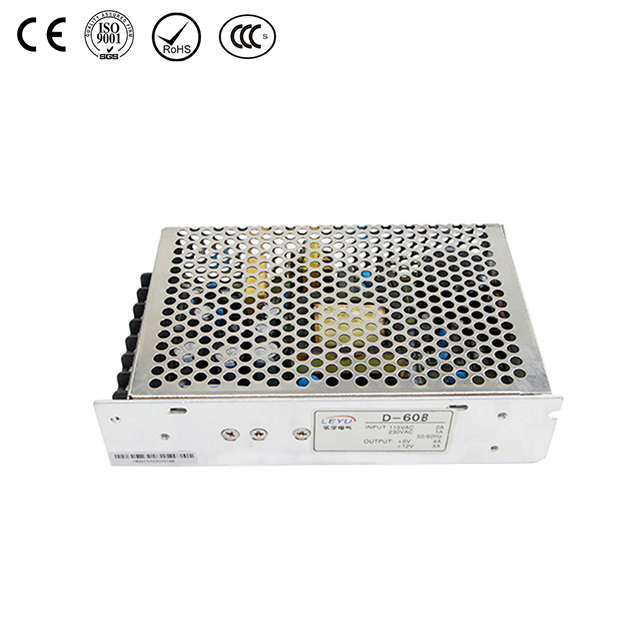

D-60 Multiple Output Power Supply

The D-60 Multiple Output Power Supply is a 60W dual-output switching power supply with models D-60A, D-60B, and D-60C. It provides DC voltages like 5V, 12V, 24V, 15V, and -15V, with rated powers from 56W to 60W. Boasting high efficiency (up to 78%) and universal AC input, this power supply is a reliable choice for devices needing stable multiple outputs.

Model:
D Series Multiple Output Power Supply->D-60
Brand:
LEYU

Availability:

Quantity:



Inquire Add to Basket

Multiple Output Power Supply 100-240VAC Global Input Multi Output DC Power Supply ±0.5% Output Voltage Accuracy UPS Integrated Multi Output Synchronized Output Power Supply

Product Specifications

OUTPUT
Model	D-60A		D-60B		D-60C
Output number	CH1	CH2	CH1	CH2	CH1	CH2
DC Voltage	5V	12V	5V	24V	15V	-15V
Rated Current	4A	3A	2A	2A	2A	1.5A
Current Range	0.8-4A	0.3-3A	0.8-3A	0.2-2A	0.5-2A	0.2-1.5A
Rated Power	56W		58W		60W
Ripple & Noise	80mVp-p	100mVp-p	80mVp-p	120mVp-p	100mVp-p	120mVp-p
Voltage Adj. Range	CH1: -5%,+10%		CH1: -5%,+10%		CH1: -5%,+10%
Voltage Tolerance	±2%	±6%	±3%	±5%	±3%	±5%
Setup,Rise,Hold Up Time	800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC at full load
INPUT
Voltage Range	85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC
AC Current	1.8A/115V 0.9A/230V
Efficiency	74%		76%		78%
Inrush Current	Cold start 25A/115V 50A/230V
Leakage Current	<1mA/240VAC
PROTECTION
Over Load	105%~150% rated output power
	Protection type: Shut down o/p voltage, recovers automatically after fault condition is removed
Over Voltage	CH1: 115%~135%
	Protection type: hiccup mode, auto-recovery after fault condition is removed
ENVIRONMENT
Working Temp., Humidity	-10℃~+60℃; 20%~90%RH
Storage Temp., Humidity	-20℃~+85℃; 10%~95%RH non-condensing
Temp. Coefficient	±0.03%/℃(0~50℃)
Vibration	10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
STANDARD
Safety Standard	Design refer to UL1012, UL60950, EN60950
EMC Standard	Design refer to EN55022(CLSPR22),EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024
OTHERS
Dimension	1599738mm(LWH)
Weight	0.55Kg
Packing	45pcs/25.5Kg/1.45CUFT
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

Product Features and Advantages

High efficiency and reliability: With efficiency up to 78%, this power supply minimizes energy waste, making it cost-effective for long-term use. Its design ensures stable performance even in varying conditions, outperforming many standard power supplies.
Universal AC input: The full-range AC input (85~264VAC) allows it to work seamlessly worldwide, eliminating the need for different power supplies in different regions—a key benefit over single-range alternatives.
Comprehensive protections: Equipped with short circuit, over load, and over voltage protections, it safeguards connected devices. Overload causes automatic shutdown with recovery, while overvoltage uses hiccup mode, enhancing durability compared to unprotected power supplies.
Easy monitoring: The LED indicator clearly shows power-on status, making it simple to check operation at a glance—more convenient than models without visual cues.
Efficient cooling: Relies on free air convection, avoiding fan-related noise and maintenance issues, which is a plus over fan-cooled power supplies in quiet environments.
Stable performance: Fixed switching frequency at 54KHz ensures consistent output, reducing interference with sensitive equipment—a feature critical for precision devices.
Rigorous testing: 100% full load burn-in test guarantees reliability, giving users confidence that the multiple output power supply will perform as expected under heavy use.

Applications

Industrial machinery requiring 5V and 24V to power sensors and control modules
Audio equipment needing ±15V for balanced audio signals
Office devices like scanners that use 5V for logic circuits and 12V for motors
Laboratory instruments with multiple components needing different voltages
Telecom equipment where stable 5V and 12V outputs are essential for operation

Material And Performance

Made with high-quality components, it withstands vibrations (10~500Hz, 2G) and operates in -10℃~+60℃. The temperature coefficient of ±0.03%/℃ (0~50℃) ensures output remains stable across temperature changes, maintaining performance in harsh conditions.
