| Model | ZDR5-060 | ZDR5-120 | ZDR5-240 | ||
| OUTPUT | |||||
| DC Voltage | 24V | 24V | 24V | ||
| Rated Current | 2.5A | 5A | 10A | ||
| Current Range | 0-2.5A | 0-5.0A | 0-10.0A | ||
| Rated Power | 60W | 120W | 240W | ||
| Ripple & Noise | 100mV | 120mV | 150mV | ||
| Voltage Adj. Range | -10% to 15% (with V.ADJ)(guaranteed) | ||||
| Voltage Tolerance | ±1% | ±1% | ±1% | ||
| Setup, Rise Time | 1000ms,60ms/230VAC 1800ms,60ms/ 115VAC at full load | ||||
| Hold Up Time | 115 VAC input | 24 ms | 27 ms | 34 ms | |
| 230 VAC input | 117 ms | 128 ms | 36 ms | ||
| INPUT | |||||
| Voltage Range | 100 to 240 VAC, 90 to 350 VDC (allowable range: 85 to 264 VAC)*6 | ||||
| AC Current | AC100-220V1.3A DC90-350V0.7A | AC100-220V2.6A DC90-350V1.4A | AC100-220V5.2A DC90-350V2.8A | ||
| Efficiency | 230 VAC input | 86% | 86% | 85% | |
| Inrush Current | 115 VAC input | 16A | |||
| 230 VAC input | 32A | ||||
| 230 VAC input | <1mA/240VAC | ||||
| PROTECTION | |||||
| Over Load | 120% to 150% of rated load current | ||||
| Over Voltage | YWS*5 | ||||
| Over Temp | No | ||||
| ENVIRONMENT | |||||
| Working Temp., Humidity | -25 to 60°C (Refer to Engineering Data),20% to 90% (Storage humidity: 10% to 95%) | ||||
| Storage Temp.,Humidity | -10 to 60°C | ||||
| Vibration | 10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions | ||||
| each in X,Y, and Z directions10 to 150 Hz, 0.35-mm single amplitude (5 G max for 60W , 120W, 240 W,) for 80 min.each in X,Y, and Z directions | |||||
| SAFETY | |||||
| Withstand Voltage | I/P-O/P: 3KVAC I/P-FG: 2.0KVAC O/P-FG: 0.5KVAC | ||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC | ||||
| STANDARD | |||||
| Safety Standard | Design refer to EN62368-1, | ||||
| EMC Standard | EN55032,EN55035,EN61000-3-2,EN61000-3-3 | ||||
| OTHERS | |||||
| Dimension | 90×32×110 | 125×40×124 | 125×60×126 | ||
| Weight | 260g | 550g | 840g | ||
| Packing | |||||
| NOTE： 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0. 1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | |||||
Wide Voltage Adaptability: Works with 100-240VAC (global compatibility) and 90-350VDC, suiting hybrid industrial setups.
Multi-Protection Safeguards: Built-in overload, overvoltage, short-circuit, and (for 120W/240W) overtemperature protection.
Efficient Power Conversion: Up to 86% efficiency reduces energy waste and heat generation.
DIN Rail Mounting: Snap-on 35mm DIN rail design for quick, tool-free installation.
Compact Design: Space-saving profiles fit seamlessly into crowded control cabinets.
Versatile Sizing: Choose 60W (2.5A), 120W (5A), or 240W (10A) to match your load requirements.
Stable Output: ±1% voltage tolerance and low ripple/noise ensure consistent power for sensitive devices.
Durable Build: Flame-retardant housing and industrial-grade components withstand harsh environments (-25°C to +60°C).
The ZDR5 series powers critical systems:
Industrial Automation: PLCs, sensors, and actuators in manufacturing lines.
Security & Surveillance: Cameras, access control, and alarm systems.
Renewable Energy: Solar panel inverters and battery storage units.
Smart Buildings: Lighting, HVAC controls, and IoT devices.
Constructed with high-quality electrolytic capacitors (rated for 5,000+ hours) and a rugged PCB design, the ZDR5 ensures long-term stability. Its thermal management design prevents overheating, while EMC compliance (EN55032/EN55035) minimizes interference with other equipment.
LEYU subjects each ZDR5 unit to rigorous testing:
Aging Tests: Simulate 1,000+ hours of operation to verify reliability.
Surge Testing: Validate resistance to voltage spikes (up to 150% of rated load).
Environmental Checks: Confirm performance in extreme temperatures and humidity.
Custom Solutions: Tailored configurations for unique project needs (e.g., voltage adjustment).
Global Support: 24/7 technical assistance and fast response to inquiries.
Proven Expertise: Decades of experience in industrial power supply design.
Installation Manual

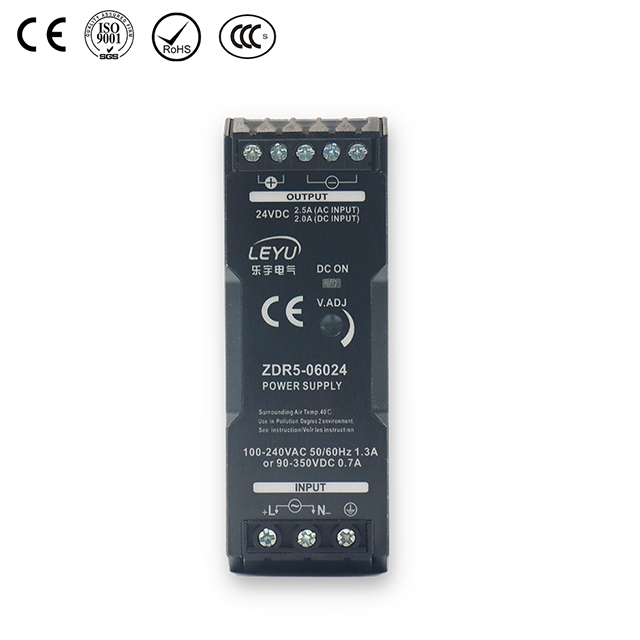

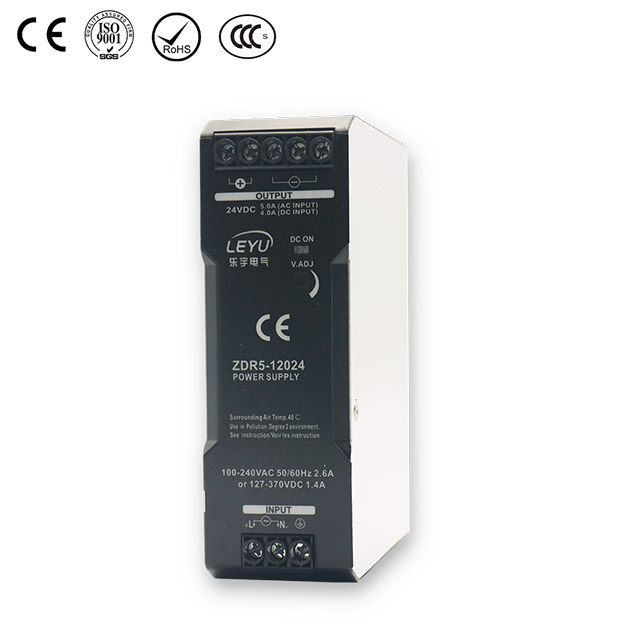

l Type ：ZDR5 DIN rail power supply（Series ：ZDR5-60, 120, 240）
| ZDR5-60-24 | INPUT: 100-240VAC | 1.6A | 50/60Hz | OUTPUT: 24V 2.5A |
| ZDR5-120-24 | INPUT: 100-240VAC | 2.6A | 50/60Hz | OUTPUT: 24V 5A |
| ZDR5-240-24 | INPUT: 100-240VAC | 2.8A | 50/60Hz | OUTPUT: 24V 10A |
l Introduction
ZDR5 is a DIN Rail power supply series with an economical price and slim design. Like other LEYU’s DIN Rail series, they can be mounted on a TS35 Standard DIN rail.
l Installation
（1）Always allow good ventilation clearances, 5mm left and right, 40mm above and 20mm below, around the unit in use to prevent it from overheating. Also a 10-15cm clearance must be kept when the adjacent device is a heat source.
（2）The appropriate mounting orientation for the unit is vertical, the input terminals at the bottom and output on the top. Mounting orientations other than that, such as upside down, horizontal, or table-top mounting, are not allowed.
（3）Use copper wire only, and recommended wires are shown as below.
| AWG | 18 | 16 | 14 |
| Rated Current of Equipment (Amp) | 7A | 10A | 15A |
| Cross-section of Lead(mm2 ) | 0.8 | 1.3 | 2.1 |
| Note: Current each wire carries should bede-rated to 80% of the current suggested above when using 5 or more wires connected to the unit. | |||
Make sure that all strands of each stranded wire enter the terminal connection and the screw terminals are securely fixed to prevent poor contact. If the power supply possesses multi-output terminals, please make sure each contact is connected to wires to prevent too much current stress on a single contact.
（4）Use wires that can withstand temperatures of at least 80°C, such as UL1007.
（5）Recommended wire strapping length is 5mm (0.197”).
（6）Recommended screwdriver is 3mm, slotted type.
Installation Manual
（7）The recommended torque setting for terminals is shown as below.
| Model | I/P | O/P |
| ZDR5-60 | 6.9 kgf-cm (6 Lb-in) | 6.9 kgf-cm (6 Lb-in) |
| ZDR5-120 | 7.5 kgf-cm (6.5 Lb-in) | 7.5 kgf-cm (6.5 Lb-in) |
| ZDR5-240 | 7.5 kgf-cm (6.5 Lb-in) | 7.5 kgf-cm (6.5 Lb-in) |
（8）Suggested fuse and maximum number of the PSUs that can be connected to a circuit breaker at 230V are shown as below.
| Model | Fuse | Circuit breaker | |
| C16 | D16 | ||
| ZDR5-60 | T6.3A/L250V | 6 | 13 |
| ZDR5-120 | T8.0A/L250V | 5 | 10 |
| ZDR5-240 | T8.0A/L250V | 4 | 10 |
（9）Mounting Instruction ：
Mount as shown in figure only, with input terminals down, or else sufficient cooling will not be possible. Admissible DIN rail ：TS35/7.5 or TS35/15
For rail fastening ：
（a）Tilt the unit slightly rearwards. （b）Fit the unit over top hat rail.
（c）Slide it downward until it hits the stop.
（d）Press against the bottom for locking.
（e）Shake the unit slightly to check the locking action.
"Click"
（10）For other information about the products, please refer to for details.
l Warning / Caution !!
（1）Risk of electrical shock and energy hazard. All failure should be examined by a qualified technician. Please do not remove the case of the power supply by yourself!
（2）Risk of electric arcs and electric shock (danger to life). Connecting both the primary and the secondary sides together is not allowed.
（3）Risk of burn hazard. Do not touch the unit in operation and shortly after disconnection!
（4）Risk of fire and short circuit. The openings should be protected from foreign objects or dripping liquids.
（5）Only install the unit in a pollution degree 2 environment (Note.1).
（6）Please do not install the unit in places with high moisture or near the water.
Installation Manual
（7）The maximum operating temperature is 40°C for ZDR5-60-24,ZDR5-120-24, ZDR5-240-24, please do not install the unit in places with high ambient temperature or near fire source.
（8）The FG (
) must be connected to PE (Protective Earth).
（9）Output current and output wattage must not exceed the rated value on its specification.
（10）Disconnect system from supply voltage:
Before commencing any installation, maintenance or modification work: Disconnect your system from supply voltage. Make sure that inadvertent connection in circuit will be impossible!
（11）For continued protection against risk of fire, replace only with same type and rating of fuse.
Note.1: Pollution Degree 2 applies where there is only non-conductive pollution that might temporarily become conductive due to occasional condensation. Generally refer to dry, well-ventilated locations, such as control cabinets.
