SPECIFICATIONS | ||||||||||||
OUTPUT | ||||||||||||
Model | Q-120B | Q-120C | Q-120D | |||||||||
Output number | CH1 | CH2 | CH3 | CH4 | CH1 | CH2 | CH3 | CH4 | CH1 | CH2 | CH3 | CH4 |
DC Voltage | 5V | 12V | -5V | -12V | 5V | 15V | -5V | -15V | 5V | 12V | 24V | -12V |
Rated Current | 11A | 4A | 1A | 1A | 10A | 3.5A | 1A | 1A | 8A | 2A | 2A | 1A |
Current Range | 2-12A | 0.5-5A | 0.2-1A | 0.2-1A | 2-12A | 0.5-5A | 0.2-1A | 0.2-1A | 2-12A | 0.2-5A | 0.2-2A | 0.2-1A |
Rated Power | 120W | 120W | 120W | 120W | 122.5W | 122.5W | 122.5W | 122.5W | 124W | 124W | 124W | 124W |
Ripple & Noise | 80mVp-p | 120mVp-p | 80mVp-p | 120mVp-p | 80mVp-p | 150mVp-p | 80mVp-p | 150mVp-p | 80mVp-p | 120mVp-p | 180mVp-p | 120mVp-p |
Voltage Adj. Range | CH1:-5%, +10% | CH1:-5%, +10% | CH1:-5%, +10% | |||||||||
Voltage Tolerance | ±2% | ±6% | ±6% | ±6% | ±2% | +10%, -5% | ±6% | +10% ,-5% | ±2% | ±6% | ±6% | ±6% |
Setup, Rise, Hold Up Time | 200ms, 50ms, 20ms at full load | |||||||||||
INPUT | ||||||||||||
Voltage Range | 88~132VAC/176~264VAC selected by switch 47-63Hz; 240~370VDC | |||||||||||
AC Current | 2.8A/115V 1.6A/230V | |||||||||||
Efficiency | 77% | 76% | 80% | |||||||||
Inrush Current | Cold start 35A | |||||||||||
Leakage Current | <3.5mA/240VAC | |||||||||||
PROTECTION | ||||||||||||
Over Load | 105%~135% | |||||||||||
Protection type: Shut down o/p voltage, re-power on to recover | ||||||||||||
Over Voltage | CH1:115%~135% | |||||||||||
Protection type: Shut down o/p voltage, re-power on to recover | ||||||||||||
ENVIRONMENT | ||||||||||||
Working Temp., Humidity | -10℃~+60℃; 20%~90%RH | |||||||||||
Storage Temp., Humidity | -20℃~+85℃; 10%~95%RH | |||||||||||
Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes | |||||||||||
SAFETY | ||||||||||||
Withstand Voltage | I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | |||||||||||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | |||||||||||
STANDARD | ||||||||||||
Safety Standard | Design refer to 1950,TUV EN60950 | |||||||||||
EMC Standard | Design reefer to EN55022(CISPR22),EN61000-3-2,-3,EN55024,EN61000-4-2,3,4,5,6,8,11; ENV50204 | |||||||||||
OTHERS | ||||||||||||
Dimension | 199*110*50mm(L*W*H) | |||||||||||
Weight | 0.86Kg | |||||||||||
Packing | 16pcs/14.7Kg/0.95CUFT | |||||||||||
NOTE | ||||||||||||
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Each output can within current range. But total output power can’t exceed rated load. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | ||||||||||||

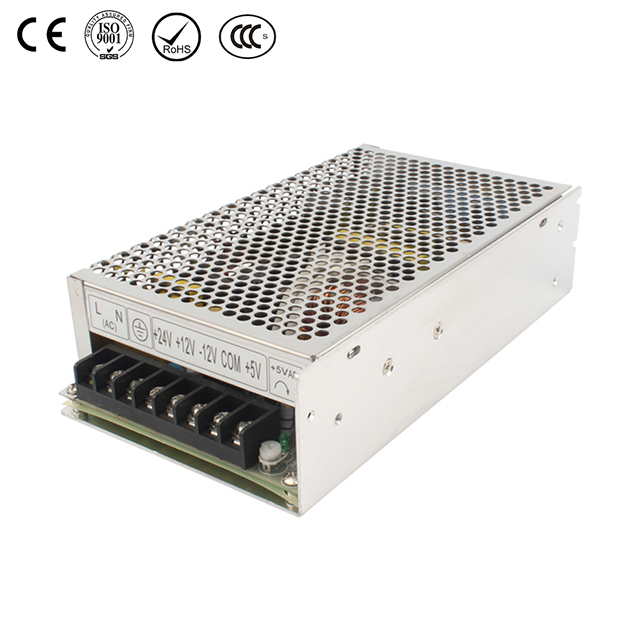

Quad output design: Four channels meet diverse power needs, eliminating the need for multiple single-output power supplies and saving space.
High efficiency: Up to 80% efficiency reduces energy loss, making it more cost-effective than lower-efficiency alternatives.
Switchable AC input: Adapts to 88~132VAC or 176~264VAC via switch, suitable for global use without extra adapters.
Comprehensive protection: Shuts down output during overloading (105%~135%) or overvoltage (115%~135%), with recovery via re-powering, protecting connected devices better than unprotected models.
Rigorous testing: 100% full load burn-in test ensures the power supply works reliably under heavy use, giving users confidence in its performance.
Stable frequency: Fixed 25KHz switching frequency minimizes interference, crucial for sensitive electronics compared to variable-frequency power supplies.
Durable build: Withstands vibration (10~500Hz, 2G) and operates in -10℃~+60℃, ensuring longevity in tough environments.
Constructed with high-quality components, it maintains stable output with ripple & noise as low as 80mVp-p. The isolation resistance of 100M Ohms/500VDC and withstand voltage of 3KVAC (I/P-O/P) ensure safe operation, while the wide working temperature range guarantees performance in various conditions.
Factory automation lines powering PLCs, sensors, and small actuators
Research labs running experiments with multiple electronic devices
Broadcast studios operating audio and video equipment
Telecom rooms supplying power to routers and communication modules
Q: What’s the maximum total power the Q-120 series can provide?
A: Q-120D has the highest rated power at 124W, but total output can’t exceed the rated load.
Q: Can all four outputs be used at their maximum current simultaneously?
A: Each output works within its current range, but total power must not exceed the rated load.
Q: How does the overvoltage protection work?
A: It shuts down the output when voltage reaches 115%~135% of CH1’s rated voltage, and recovers after re-powering.
Download：
Q-120.doc
