SPECIFICATIONS | ||||||||||||||||
OUTPUT | ||||||||||||||||

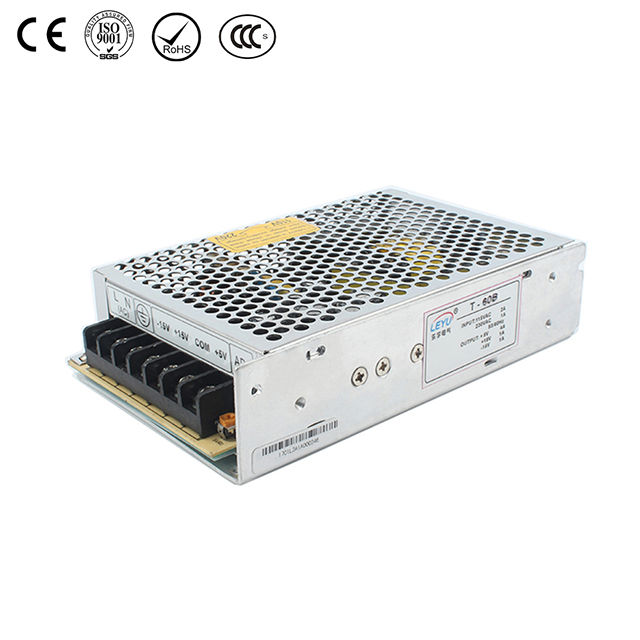

Model | T-60A | T-60B | T-60C | T-60D | ||||||||||||
Output number | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | ||||
DC Voltage | 5V | 12V | -5V | 5V | 12V | -12V | 5V | 15v | -15V | 5V | 12V | 24V | ||||
Rated Current | 5A | 2.5A | 0.5A | 5A | 2.5A | 0.5A | 5A | 2A | 0.5A | 5A | 2A | 0.5A | ||||
Current Range | 0.5-7A | 0.2-3.5A | 0-1A | 0.5-7A | 0.2-3.5A | 0-1A | 0.5-7A | 0.2-3A | 0-1A | 0-5A | 0-2A | 0-0.5A | ||||
Rated Power | 57.5W | 61W | 62.5W | 61W | ||||||||||||
Ripple & Noise | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | ||||
Voltage Adj. Range | CH1: -5%, +10% | CH1: -5%, +10% | CH1: -5%, +10% | CH1: -5%, +10% | ||||||||||||
Voltage Tolerance | ±2% | ±6% | ±6% | ±2% | ±6% | ±6% | ±2% | ±6% | ±6% | ±2% | ±6% | ±6% | ||||
Setup, Rise, Hold Up Time | 300ms,50ms,10ms/230VAC 800ms,50ms,10ms/115VAC at full load | |||||||||||||||
INPUT | ||||||||||||||||
Voltage Range | 85~264VAC 47-63Hz; 120~370VDC | |||||||||||||||
AC Current | 2A/115V 1A/230V | |||||||||||||||
Efficiency | 72% | |||||||||||||||
Inrush Current | Cold start 30A/115V 60A/230V | |||||||||||||||
Leakage Current | <3.5mA/240VAC | |||||||||||||||
PROTECTION | ||||||||||||||||
Over Load | 105%~150% | |||||||||||||||
Protection type: Shut down o/p voltage, recovers automatically after fault condition is removed | ||||||||||||||||
Over Voltage | 115%~135% | |||||||||||||||
Protection type: Hiccup mode, recovers automatically after fault condition is removed | ||||||||||||||||
ENVIRONMENT | ||||||||||||||||
Working Temp., Humidity | -10℃~+60℃; 20%~90%RH | |||||||||||||||
Storage Temp., Humidity | -20℃~+85℃; 10%~95%RH | |||||||||||||||
Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes | |||||||||||||||
SAFETY | ||||||||||||||||
Withstand Voltage | I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | |||||||||||||||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | |||||||||||||||
STANDARD | ||||||||||||||||
Safety Standard | Design refer to UL1012,UL60950, TUVEN60950 | |||||||||||||||
EMC Standard | Design refer to EN55022,EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024 | |||||||||||||||
OTHERS | ||||||||||||||||
Dimension | 159*97*38mm(L*W*H) | |||||||||||||||
Weight | 0.55Kg | |||||||||||||||
Packing | 24pcs/14.1Kg/0.75CUFT | |||||||||||||||
NOTE | ||||||||||||||||
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | ||||||||||||||||
Triple-output flexibility: Three channels eliminate the need for separate power supplies, simplifying wiring in devices with multiple components (e.g., 5V logic, 12V motors, ±15V sensors).
Universal input: 85~264VAC full-range input works seamlessly in global locations without manual switching, ideal for international projects.
Intuitive monitoring: LED indicator shows power status at a glance, making troubleshooting faster than non-indicator models.
Passive cooling: Free air convection avoids fan noise and wear, suitable for quiet environments like offices or labs.
Self-recovering protections: Shuts down during overload (105%~150%) or overvoltage (115%~135%), then resumes automatically—no manual reset needed, reducing downtime.
Compact design: 1599738mm size fits tight spaces, perfect for embedded systems or crowded equipment racks.
Safety certified: Meets UL1012, UL60950, and TUV EN60950 standards, ensuring safe operation in industrial and commercial settings.
Built with high-grade components, the T-60 series maintains stable output with 100mVp-p ripple—critical for sensitive electronics. It withstands 3KVAC isolation (I/P-O/P) and 2G vibration (10~500Hz), ensuring durability in harsh conditions. The wide operating temperature range (-10℃~+60℃) makes it reliable in unregulated environments.
The T-60 series stands out with its triple-output design, eliminating clutter from multiple power supplies. Its universal input, self-recovering protections, and compact size make it versatile for diverse applications—all backed by a 2-year warranty for added peace of mind. Whether for industrial or commercial use, it delivers reliable performance where multi-voltage power is key.
Q: Can all three outputs operate at maximum current at the same time?
A: Yes, as long as the total power doesn’t exceed the model’s rated power (e.g., 62.5W for T-60C).
Q: Does it work with DC input?
A: Yes, it accepts 120~370VDC input in addition to AC.
Q: How does overvoltage protection work?
A: It enters hiccup mode (intermittent shutdown) when voltage hits 115%~135% of rated, then recovers automatically once the issue is fixed.
