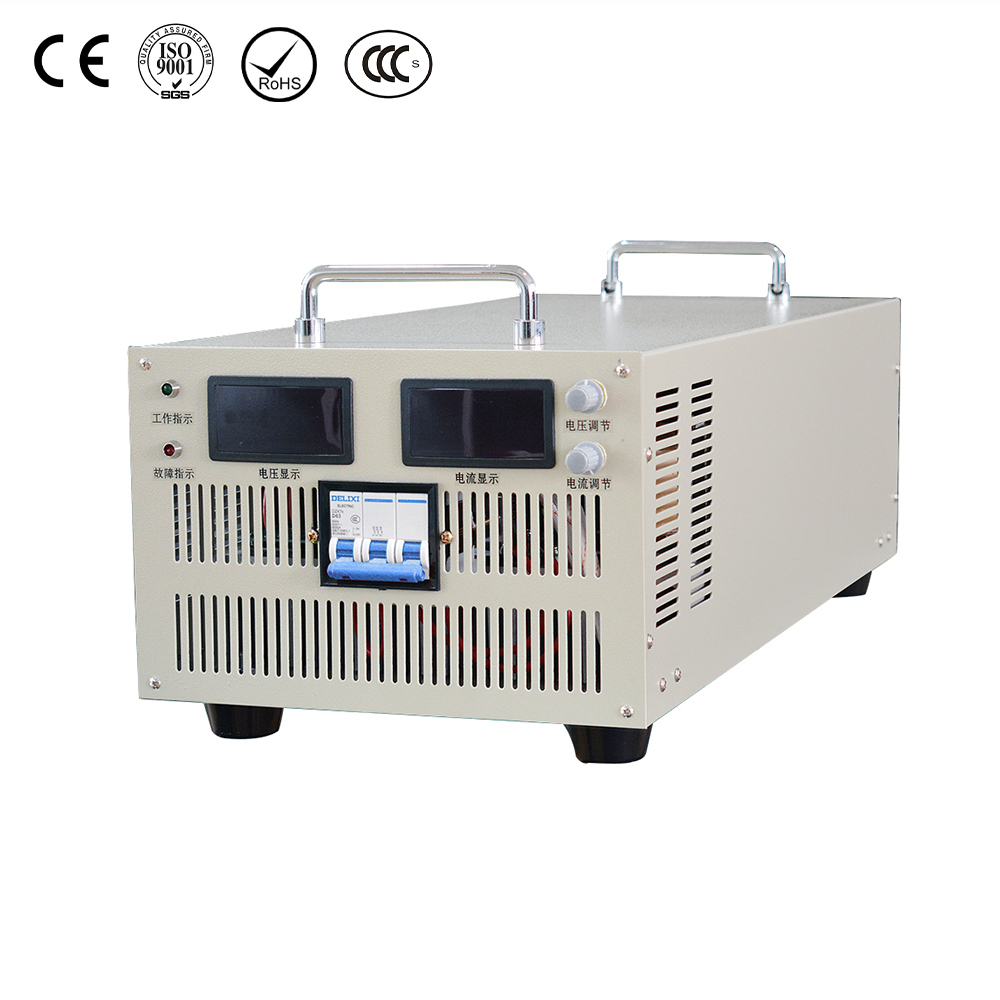

SV-5000 High Power Power Supply

Name: SV-5000 High Power Power Supply
Brand: LEYU
Rating: 5.0 (91 reviews)

Looking for a top-notch Power Supply that delivers consistent performance? Our High Power Power Supply, the SV-5000 series, is a 5000W single-output switching power supply designed to meet your high-power needs. With models offering DC voltages of 30V, 40V, and 110V, and rated currents up to 167.0A, it’s built to handle heavy loads with ease. Whether you’re powering industrial equipment or complex systems, this High Power Power Supply ensures stable operation, making it a go-to choice for demanding applications.

Model:
SV-5000 High Power Power Supply
Brand:
LEYU

Availability:

Quantity:



Inquire Add to Basket

high power dc power supply high power dc supply high voltage ac power supply high voltage dc-dc power supply power supply high power

Product Description

SPECIFICATIONS
OUTPUT
Model	SV-5000-30	SV-5000-40	SV-5000-110
DC Voltage	30V	40V	110V
Rated Current	167.0A	120.0A	45.0A
Current Range	0-167.0A	0-120.0A	0-45.0A
Ripple & Noise	0.50%	0.50%	0.50%
Voltage Adj. Range	0-30V	0-40V	0-110V
Setup&Rise Time	100ms,50ms at full load
Hold Up Time	20ms at full load
INPUT
Voltage Range	AC220V±20% 47～63HZ
AC Current	3.2A/115V 1.6A/230V
Efficiency	86%	87%	89%
Inrush Current	40A/230V
Leakage Current	<0.5MA/230VAC
PROTECTION
Over Load	110～150%
	Protection type: Shut down o/p voltage, re-power on to recover
Over Voltage	115～150%
	Protection type: Shut down o/p voltage, re-power on to recover
SAFETY
Withstand Voltage	I/P-O/P:1.5KVAC/1min I/P-F/G:1.5KVAC/1min
Isolation Resistance	O/P-F/G:0.5KVAC /1min
Size	500500150mm
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

Advantages

The High Power Power Supply stands out with its wide current range, allowing flexibility to adapt to different devices and loads.
Its high efficiency not only saves energy but also reduces heat generation, extending the product’s lifespan.
The robust protection features prevent damage to both the power supply and connected equipment, reducing repair costs.
With a compact size (500500150mm), it saves space in your setup while delivering powerful performance.

Product Features

High efficiency and reliability, ensuring minimal energy waste and long-term use.
100% full load burn-in test, guaranteeing it can handle maximum loads without failure.
Multiple protection mechanisms, including short circuit, overload, and overvoltage protection, which shut down the output voltage and recover after re-powering.
Clear voltage and current display, along with easy voltage and current调节, making operation straightforward.
1-year warranty, providing peace of mind for your investment.

Applications

This High Power Power Supply is ideal for various industrial settings, such as manufacturing plants where heavy machinery requires stable power. It’s also suitable for laboratory equipment that needs precise voltage and current control. Additionally, it can be used in data centers to support high-power servers and in telecommunications systems to ensure uninterrupted operation.

Material And Performance

Crafted with high-quality materials, the Power Supply is built to withstand tough conditions. The components are selected for durability, ensuring consistent performance even in varying temperatures and environments. Its ability to maintain stable output under different loads and input voltages showcases its excellent performance, making it a reliable choice for critical applications.

Product Operate Guide

Using the High Power Power Supply is simple. First, connect the input to an AC power source within the range of AC220V±20% at 47～63HZ. Then, connect your device to the output terminals. Use the voltage and current adjust knobs to set the desired values, which are clearly displayed on the screen. If a fault occurs, the fault indicator will light up; simply power off and restart to recover, thanks to the protection mechanisms.

service and support

We take quality seriously. Every High Power Power Supply undergoes rigorous testing, including the 100% full load burn-in test, to ensure it meets our strict standards. Each unit is checked for efficiency, protection functionality, and overall performance before leaving the factory. This thorough quality control process ensures that you receive a product you can trust. We’re here to help. If you have any questions about the Power Supply, our team is available to assist you. Whether it’s installation guidance or troubleshooting, we provide prompt support. With a 1-year warranty, we cover any defects in materials or workmanship, ensuring your satisfaction with our High Power Power Supply.

Choosing our High Power Power Supply means choosing reliability, efficiency, and quality. Our LEYU brand is committed to delivering top-notch products, and the SV-5000 series is no exception. With its excellent features, rigorous quality control, and dedicated support, it’s the perfect Power Supply for your high-power needs. Trust us to provide the energy solution you can depend on.

Download:SV-5000.doc
