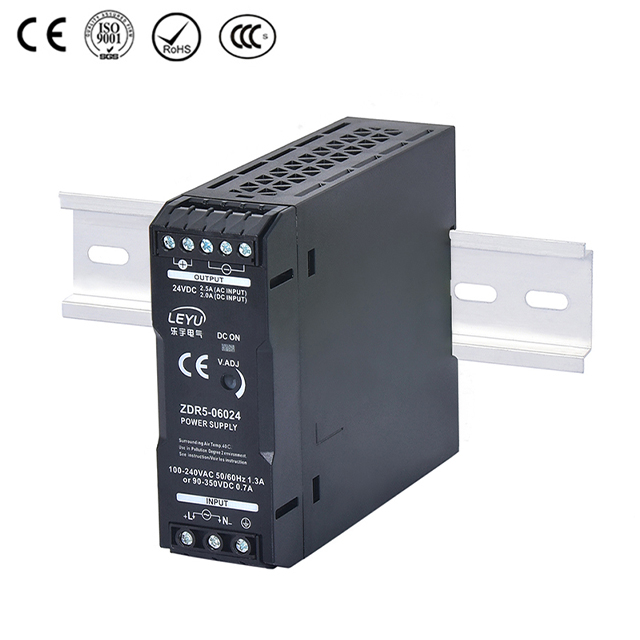

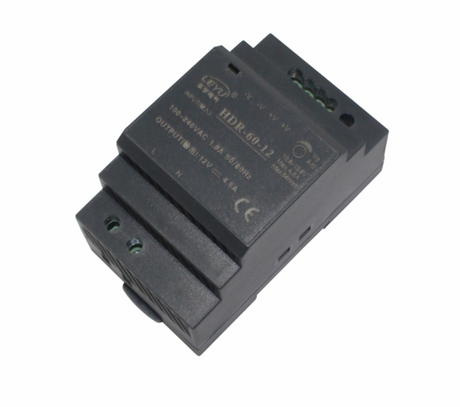

ZDR5-60 Din Rail Mount Power Supply Ultra Thin for Distribution Box

ZDR5-60 Din Rail Mount Power Supply Ultra Thin for Distribution Box

Universal AC input/ full range
Protections: Short circuit/Over load/Over voltage/Over temperature
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
LED indicator for power on
100% full load burn-in test
2 years warranty

Model:
ZDR5-60
Brand:
LEYU

Availability:

Quantity:



Inquire Add to Basket

24v din rail power supply 12v din rail power supply industrial DIN Rail power supply din rail power supply adjustable ac dc industrial din rail power supply ac dc ultra slim din rail power supply din rail adjustable dc power supply din mount power distribution block best din rail power supply smps

Product Description

60W single output din rail power supply

Model	ZDR5-60-12	ZDR5-60-24
DC Voltage	12V	12V
Rated Current	5A	2.5A
Current Range	0 ~ 5A	0 ~ 2.5A
Rated Power	60W	60W
Voltage Adj. Range	10.8 ~ 13.8V	21.6 ~ 29V
Voltage Tolerance Note.3	±2.0%	±1.0%
Line Regulation	±1.0%	±1.0%
Load Regulation	±1.0%	±1.0%
Setup, Rise Time	600ms/230VAC 600ms/115VAC at full load
Hold Up Time (Typ.)	120ms/230VAC 30ms/115VAC at full load
Voltage Range	85 ~ 264VAC (277VAC operational ) 120 ~ 370VDC (390VDC operational )
Frequency Range	50 ~ 60Hz
Efficiency (Typ.)	82%	86%
AC Current (Typ.)	1.3A/115VAC 0.7A/230VAC
Over Load	105 ~ 160% rated output power
	Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed
	Constant current limiting within 50% ～100% rated output voltage, recovers automatically after fault condition is removed
Over Voltage	14.2 ~ 16.2V	18.8 ~ 22.5V
	Protection type : Shut down o/p voltage, re-power on to recover
Working Temp.	-20 ~ +70℃ (Refer to "Derating Curve")
Working Humidity	10% ~ 95%
Storage Temp., Humidity	-30 ~ +85℃, 10 ~ 95% RH non-condensing
Safety Standards	UL62368-1, UL508, TUV EN61558-2-16, IEC62368-1, EAC TP TC 004, BSMI CNS14336-1 approved; Design refer to EN62368-1
Dimension	3311189mm (WHD)
Weight	236g
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
