| Model | OPIP-3K-1 | OPIP-3K-1 | OPIP-3K-1 | OPIP-3K-2 | OPIP-3K-2 | OPIP-3K-2 |
| Rated power | 3000W | |||||
| Peak power | 6000W | |||||
| Input voltage | DC12V | DC24V | DC48V | DC12V | DC24V | DC48V |
| Output voltage | 100VAC or 110VAC or 120VAC±5% | 220VAC or 230VAC or 240VAC±5% | ||||
| Unload current less than | 1.3A | 0.8A | 0.6A | 1.3A | 0.8A | 0.6A |
| Output frequency | 50Hz±0.5Hz or 60Hz±0.5Hz | |||||
| Output waveform | Pure Sine Wave | |||||
| Waveform distortion | THD<3%(Linear load) | |||||
| USB port | 5V 1A | |||||
| Max.efficiency | 90% | |||||
| Input voltage range | 10-15.5V | 20-31V | 40-61V | 10-15.5V | 20-31V | 40-61V |
| Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | 10.5±0.5V | 21±0.5V | 42±1V |
| Low voltage protection | 10±0.5V | 20±0.5V | 40±15V | 10±0.5V | 20±0.5V | 40±15V |
| Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V | 15.5±0.5V | 31±0.5V | 61±1V |
| Low voltage recover | 13±0.5V | 24±0.5V | 48±1V | 13±0.5V | 24±0.5V | 48±1V |
| Over voltage recover | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | 14.8V±0.5V | 29.5V±0.5V | 59V±1V |

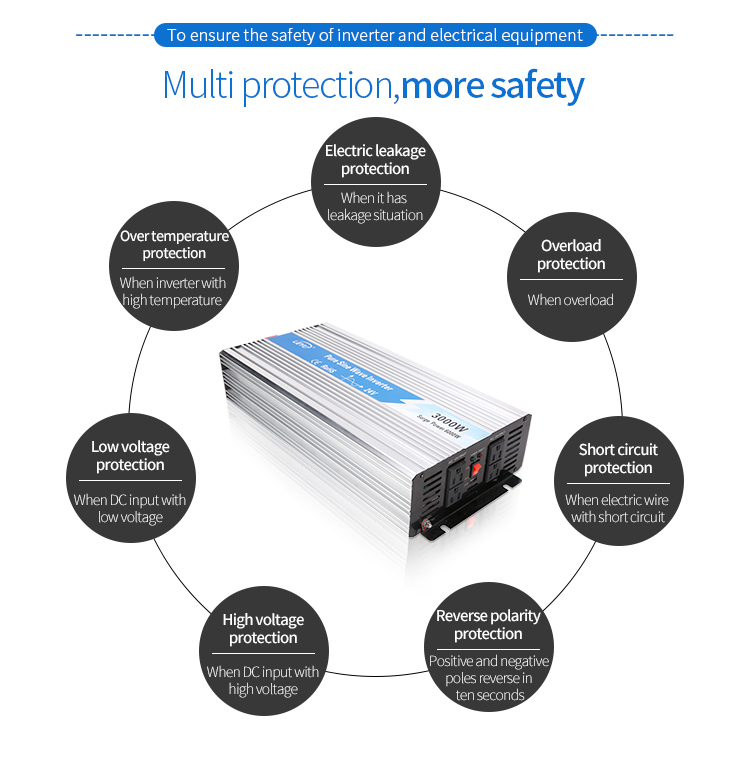

| Protection function | Low voltage | Alarm at first, voltage continously reduce. LED Red light on & shut sown | ||||
| Over voltage | LED Red light on, shut down | |||||
| Over load | LED Red light on, shut down | |||||
| Over temperature | Alarm at first, tempurature continously rise.LED Red light on & shut sown | |||||
| Short circuit | LED Red light on | |||||
| Input reverse polarity | Fuse burn-out | |||||
| Working temperature | -10°- +50° | |||||
| Storage temperature | -30°- +70° | |||||

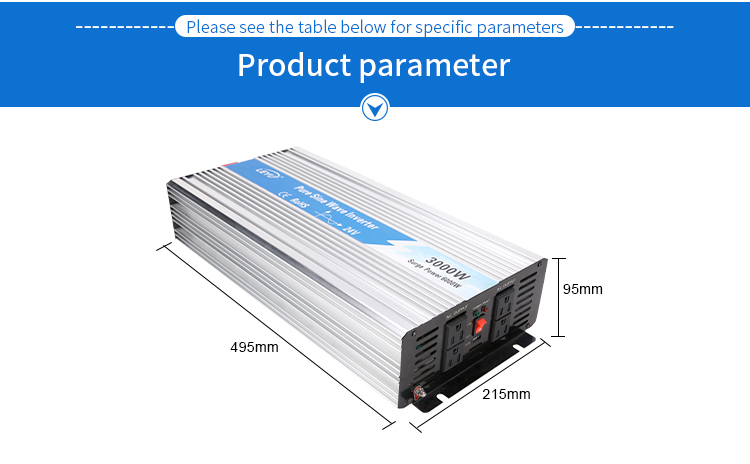

| Dimension(mm) | 495x215x95mm | |||||
| Packing(mm) | 515x262x120mm | |||||
| Net./gross weight(g) | 6620/7180g | |||||
| QTY/Ctn | 2 Pcs | |||||
| Meas./Ctn(mm) | 540x278x230mm | |||||
| Gross weight/Ctn(g) | 15200g | |||||
| Warranty | 18 months | |||||
| Configuration | Standard | |||||
| Cooling method | Intelligent air cooling | |||||
Inverter convert 12/24V DC into 100-120V/220-240V AC, Only simply plug your inverter into the cigarette lighter socket from the console in your vehicle then get power for your electronic devices such as laptops, DC players, phone chargers etc. USB charging port offers an additional choice for user.
With 20 years of research and production experience, a manufacturer of inverters certified to EU standards, with an annual production capacity of over 300,000 units.
1. The inverter is fully functional, and the socket is a universal outlet that can accommodate plugs from all countries, with OEM services available;
2. Peak output power reaches up to 6000W, providing overload and short-circuit protection;
3. Designed with low input voltage protection, featuring automatic shutdown at low voltage;
4. Made with an aluminum alloy casing and an intelligent cooling fan, offering automatic shutdown protection against overheating, and automatically restarts once normal operation resumes;
5. Maintenance-free design ensures long continuous operation of the product;
6. Plug-and-play, providing AC output interfaces to meet users' AC power needs;
7. Applicable in various fields such as home use, automobiles, boats, solar power systems, and outdoor mobile energy storage.
Q1:Who Are We?
A1:We are manufacturer.Our company is located in Wenzhou, China. With 20 years of research and production experience in this industry.
Q2:What are the key points to pay attention to during installation and use?
A2:Proper installation and use are the guarantees of safety and efficiency; please pay attention to the following points.
Voltage Matching: Ensure that the battery voltage (such as 12V/24V/48V) exactly matches the DC input voltage required by the inverter.
Correct Polarity: When connecting the battery, always connect positive to positive and negative to negative. Reversing the connections can cause fuse blowouts or even damage the equipment.
Ventilation and Heat Dissipation: Place the inverter in a well-ventilated, dry, and cool area, leaving enough space around it (recommended more than 20 cm), and avoid direct sunlight or proximity to heat sources.
Power On/Off Sequence: When in use, turn on the inverter first, then the appliances; when turning off, turn off all appliances first, then the inverter.
Do Not Open the Case Without Authorization: Non-professionals must not open the case for any operation to avoid danger or voiding the warranty.
