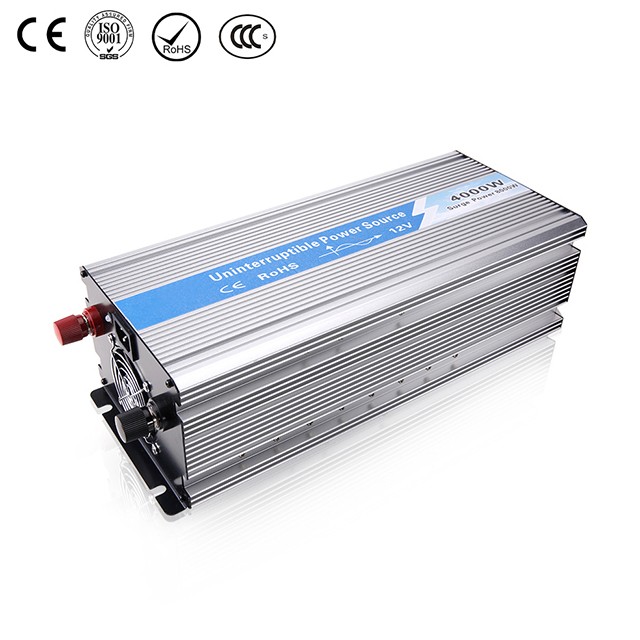

| OPIP-4000C | ||||
| | ||||
| Pure Sine Wave Inverter | ||||
| Rated Power: | 4000W | Frequency: | 50Hz / 60Hz | |
| Peak Power: | 8000W | Unit Size: | 446*199*146mm | |
| Waveform: | Pure Sine Wave | Unit Weight / G.W.: | 10100g / 12300g | |
| DC Input Voltage: | 12V / 24V | Box Size: | 575*285*240mm | |
| AC output Voltage: | 110V / 220V | Quantity/CTN: | 1PCS | |
| Technical parameters | |||||||
| Model | OPIUP-4K-1 | OPIUP-4K-1 | OPIUP-4K-1 | OPIUP-4K-2 | OPIUP-4K-2 | OPIUP-4K-2 | |
| Rated power | 4000W | ||||||
| Peak power | 8000W | ||||||
| Input voltage | DC12V | DC24V | DC48V | DC12V | DC24V | DC48V | |
| Output voltage | 100VAC or 110VAC or 120VAC±5% | 220VAC or 230VAC or 240VAC±5% | |||||
| Unload current less than | 0.8A | 0.5A | 0.2A | 0.8A | 0.5A | 0.2A | |
| Output frequency | 50Hz±0.5Hz or 60Hz±0.5Hz | ||||||
| Output waveform | Pure Sine Wave | ||||||
| Waveform distortion | THD<3%(Linear load) | ||||||
| USB port | 5V 1A | ||||||
| Max.efficiency | 90% | ||||||
| Input voltage range | 10-15.5V | 20-31V | 40-61V | 10-15.5V | 20-31V | 40-61V | |
| Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | 10.5±0.5V | 21±0.5V | 42±1V | |
| Low voltage protection | 10±0.5V | 20±0.5V | 40±15V | 10±0.5V | 20±0.5V | 40±15V | |
| Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V | 15.5±0.5V | 31±0.5V | 61±1V | |
| Low voltage recover | 13±0.5V | 24±0.5V | 48±1V | 13±0.5V | 24±0.5V | 48±1V | |
| Over voltage recover | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | |
| Protection function | Low voltage | Alarm at first, voltage continously reduce. LED Red light on & shut sown. | |||||
| Over voltage | LED Red light on, shut down | ||||||
| Over load | LED Red light on, shut down | ||||||
| Over temperature | Alarm at first, tempurature continously rise.LED Red light on & shut sown | ||||||
| Short circuit | LED Red light on | ||||||
| Input reverse polarity | Fuse burn-out | ||||||
| Working temperature | -10°- +50° | ||||||
| Storage temperature | -30°- +70° | ||||||
| Dimension(mm) | 446×199×146mm | ||||||
| Packing(mm) | 575×285×240mm | ||||||
| Net./gross weight(g) | 10100/12300g | ||||||
| QTY/Ctn | 1 Pcs | ||||||
| Meas./Ctn(mm) | 575×285×240mm | ||||||
| Gross weight/Ctn(g) | 12300g | ||||||
| Warranty | 2 years | ||||||
| Configuration | Standard | ||||||
| Cooling method | Intelligent air cooling | ||||||
| Note | Our products update constantly.The technical parameter is for reference only.Please refer to our real product. | ||||||
| Wanjia Industrial Park, Beibaixiang Town, Yueqing City, Zhejiang Province, CHINA | |||||||
Delivers 4000W continuous power (8000W peak) with a pure sine wave output (THD < 3% for linear loads). Unlike many alternatives relying on modified sine waves (often with THD > 10%), it ensures flawless operation for sensitive devices—from laptops and medical equipment to precision tools—avoiding harmonic distortion-related malfunctions.
DC Inputs: Supports 12V/24V/48V (with wide input ranges: 10–15.5V for 12V, 20–31V for 24V, 40–61V for 48V) to handle battery fluctuations.
AC Outputs: Offers 110V/220V±5% (plus 100V/120V/230V/240V options), matching global power standards and diverse battery systems.
Equipped with a large intelligent fan for dynamic heat dissipation, maintaining a 90% max efficiency. Many competitors lack robust cooling, leading to overheating, reduced lifespan, and lower energy conversion rates.
Low/high voltage alarm + shutdown (e.g., 10.5V low alarm for 12V models, 15.5V over-voltage cutoff).
Overload, over-temperature, and short-circuit protection.
A terminal cover to prevent accidental contact (critical for homes with children). Most rivals skimp on protection, risking device damage or safety hazards.
Durable Build: A metal casing (446×199×146mm) balances portability and ruggedness.
Versatile Ports: Includes a 5V/1A USB port and multi-type AC sockets (adapting to regional plug standards).
Clear Indicators: Green LED = normal operation; red LED = error (e.g., overload, over-temp).
Certified with CE and RoHS for safety and environmental standards. Backed by a 2-year warranty—outperforming competitors with shorter coverage or no certifications.
For more information, please visit the http://www.leyupower.com/OPIP-4000C-4000W-AIoT-Hybrid-Inverter-Charger-pd513650458.html.
