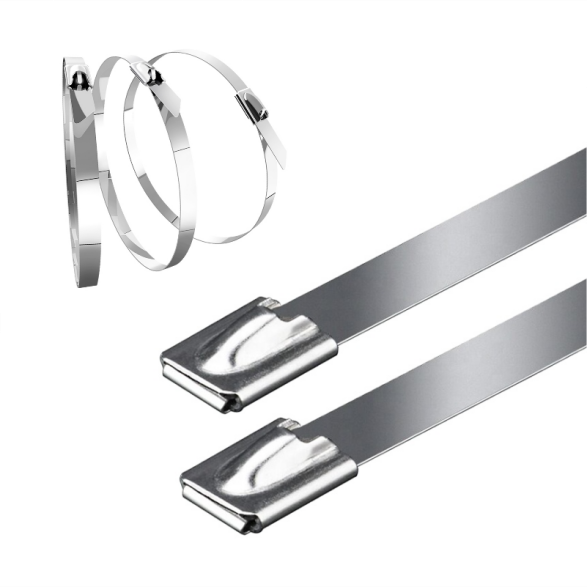

AD-G 4.6*150 Stainless Cable Tie

Product Overview

The AD-G 4.6*150 Stainless Steel Cable Tie is a specialized ball self-lock stainless steel cable tie crafted to deliver permanent, heavy-duty bundling for cables, wires, pipes, and other components. Its specifications are tailored for versatility and performance, ensuring it meets the demands of diverse environments:

Dimensions: Length of 150mm (5.9 inches), width of 4.6mm (0.181 inches), and thickness of 0.25mm – optimized for medium-sized bundles.

Load Capacity: Minimum loop tensile strength of 600N (135 lbs), enabling it to withstand moderate mechanical stress without breaking.

Bundling Range: Accommodates a maximum bundled diameter of 37mm (1.46 inches), ideal for organizing standard cable clusters.

Material: Available in 304 or 316 stainless steel (customer-selectable), both offering exceptional corrosion resistance.

Temperature Tolerance: Operates reliably from -60℃ to 550℃, outperforming plastic/nylon ties in extreme heat or cold.

Packaging: Standard 100 pieces per bag, aligned with industrial inventory practices for easy storage and bulk deployment.

Backed by LEYU’s rigorous quality control, this cable tie is non-flammable and compliant with international safety standards, ensuring long-term performance in critical applications – from electrical cabinets to outdoor solar systems.

Features

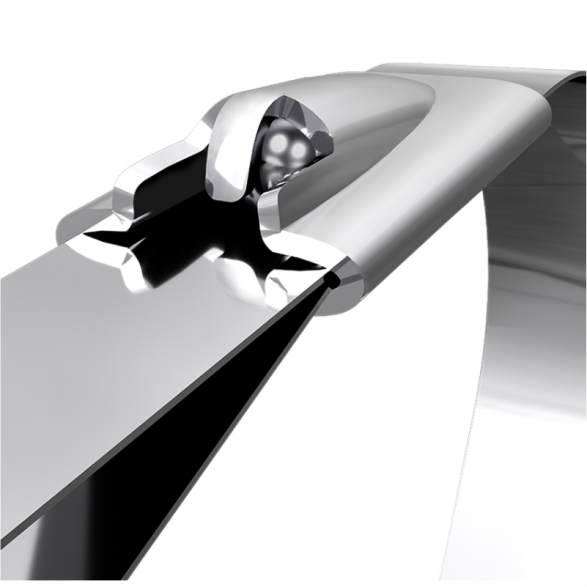

Unique Ball Self-Lock Mechanism

The AD-G 4.6*150’s standout feature is its innovative ball self-lock design. Unlike traditional cable ties that require tools or risk slipping, this mechanism allows tool-free, one-step installation: simply thread the tie through the locking head, and the internal ball secures it instantly. Once locked, the tie is non-releasable, eliminating accidental loosening – a critical advantage for high-vibration environments (e.g., automotive engines) or safety-sensitive setups (e.g., electrical wiring). This design cuts installation time by up to 50% compared to manual-fastening alternatives.

High Tensile Strength & Non-Flammability

Built for robustness, the cable tie boasts a minimum loop tensile strength of 600N (135 lbs) – enough to secure heavy cables, hoses, or small pipes without snapping. This strength is paired with non-flammable properties, complying with global electrical safety regulations (e.g., IEC 60695). In environments like data centers or industrial control rooms, this feature reduces fire propagation risks, adding an extra layer of protection for sensitive equipment.

Superior Corrosion Resistance

Thanks to its 304 or 316 stainless steel construction, the AD-G 4.6*150 resists corrosion from aggressive substances, including acetic acid, alkali, sulfuric acid, and saltwater. The standard 304 stainless steel works well for general outdoor or industrial use, while the optional 316 variant (with molybdenum) excels in marine, coastal, or chemical plant settings. This resistance ensures the tie remains intact for years, even in humid, salty, or chemically exposed environments.

Extreme Temperature Adaptability

Unlike plastic ties that become brittle at -20℃ or melt above 80℃, the AD-G 4.6*150 thrives in a temperature range of -60℃ to 550℃. This makes it suitable for:

Freezing cold storage facilities (e.g., food processing plants).

High-heat industrial zones (e.g., near furnaces or engine exhausts).

Outdoor solar systems exposed to intense sunlight or winter frost.
It retains full mechanical strength across these extremes, avoiding premature failure.

Flexible Specification Options

While the AD-G 4.6*150 is a popular standard model, Zhejiang Leyu Electric Co., Ltd. offers complementary variants to match diverse needs:

Longer lengths: 200mm, 250mm, 300mm up to 800mm (for larger bundles).

Wider width: AD-G 7.9 series (7.9mm width, 800N/180lbs tensile strength) for heavy-duty use.
All variants share the same ball self-lock mechanism and stainless steel build, ensuring consistent performance across projects – simplifying procurement for businesses with multiple bundling needs.

Applications

Electrical & Electronic Industry

The AD-G 4.6*150 is a staple in electrical setups, where it organizes cables in:

Control panels and switchgear (e.g., with LRS Series Single Output Power Supplies or NDR Series Din Rail Power Supplies).

CCTV systems and data centers (securing Ethernet or coaxial cables to prevent tangling and signal interference).

UPS charging units (resisting heat from power conversion and ensuring cable stability).
Its non-flammability and corrosion resistance make it safe for close proximity to sensitive electrical components.

Solar PV Systems

Solar installations demand ties that withstand outdoor elements, and the AD-G 4.6*150 delivers:

Secures solar panel cables, MPPT/PWM controller wires, and solar inverter connections.

Resists UV radiation, rain, and temperature swings (-60℃~550℃), avoiding degradation from prolonged sun exposure.

Works with both residential and commercial solar arrays, reducing maintenance needs by eliminating the need for frequent tie replacements.

Automotive & Transportation

In automotive, truck, or train manufacturing, the cable tie secures wire harnesses in:

Engine bays (withstanding heat up to 150℃ and resisting oil/coolant corrosion).

Undercarriages (protected from road salt and moisture via 304/316 stainless steel).

Interior compartments (preventing wire movement that could cause short circuits).
Its 600N (135 lbs) tensile strength handles vibration during travel, ensuring long-term reliability.

Construction & Infrastructure

For building, bridge, or roadway projects, the AD-G 4.6*150 secures:

Electrical cables and communication wires (outdoor or in concrete structures).

Pipes and HVAC ducting (resisting concrete admixtures or environmental dust).

Outdoor lighting wiring (withstanding rain, snow, and temperature changes).

Its 37mm (1.46 inches) maximum bundled diameter fits standard construction cable clusters, while its durability reduces rework costs.
