The power supply uses free air convection for cooling—no fans are included. This fan-free design eliminates operational noise, making it suitable for quiet environments like offices, bedrooms, or libraries. It also reduces maintenance needs, as there are no fans to clean or replace over time.
| Availability: | |
|---|---|
| Quantity: | |
MODEL | CCTV-60-12-9CH | CCTV-60-12-18CH | CCTV-60-12-4CH | |
OUTPUT | DC VOLTAGE | 12V | 12V | 12V |
OUTPUT POWER | 60W | 60W | 60W | |
CURRENT RANGE | 0-1.25Amp(Each channel) , Total 0-5Amp for 4 channels | 0-0.55Amp(Each channel) , Total 0-5Amp for 9 channels | 0-0.28Amp(Each channel) , Total 0-5Amp for 18 channels | |
RIPPLE & NOISE(max.) | 120mVp-p | |||
VOLTAGE ADJ. RANGE | ±10% | |||
LINE REGULATION | ±1.0% | |||
LOAD REGULATION | ±2.0% | |||
VOLTAGE TOLERANCE | ±2.0% | |||
SETUP,RISE TIME | 800ms, 50ms at full load | |||
HOLD UP TIME | 60ms | |||
INPUT | VOLTAGE RANGE | 110VAC or 220V AC selected | ||
AC CURRENT(Typ.) | 1.3A/115V 0.65A/230V | |||
FREQUENCY RANGE | 47-63Hz | |||
EFFICIENCY(Typ.) | 0.78 | |||
INRUSH CURRENT(Typ.) | COLD START 18A/115VAC 36A/230VAC | |||
LEAKAGE CURRENT | <1.0mA/240VAC | |||
PROTECTION | OVER LOAD | 115%~135% of rated power; Pulsing hiccup shut down | ||
OVER VOLTAGE | Rated output voltage of 105%~150% start overvoltage protection | |||
Protection: burst mode,load of abnormal conditions removed the automatic recovery | ||||
SHORT CIRCUIT | voltage off and reset input for recovers | |||
ENVIRONMENT | WORKING TEMP. | -0°C ~ +45°C (Refer to output load derating curve) | ||
WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
STORAGE TEMP.,HUMIDITY | -20°C ~ +85°C 10~95% RH | |||
TEMP. COEFFICIENT | ±0.05%/°C | |||
COOLING METHOD | BY FREE AIR CONVECTION | |||
SAFTY & EMC | SAFTY STANDARDS | CE EN60950-1 Approved | ||
WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC | |||
ISOLATION RESISTANCE | I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC | |||
EMI CONDUCTION | Compliance to EN55022 | |||
HARMONIC CURRENT | Compliance to EN61000-3-2,-3 | |||
EMS IMMUNITY | Compliance to EN55024 | |||
Other | Application | 1.Digital and electronic products | ||
2.LED, CCTV supervisory system | ||||
3.CCTV monitoring camera | ||||

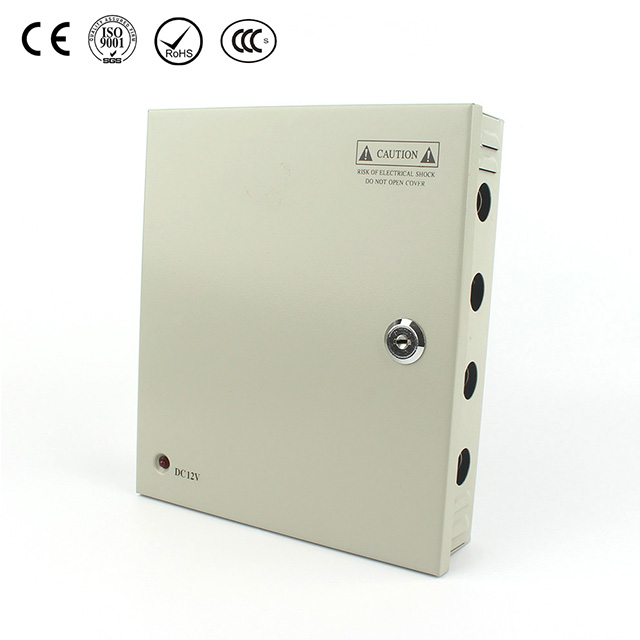

The CCTV-60 Power Supply achieves a 0.78 typical efficiency, minimizing energy waste and reducing operating costs for long-term surveillance systems. It also maintains low ripple and noise, with a maximum of 120mVp-p—a critical feature that prevents signal interference in CCTV cameras, ensuring clear video footage and stable device performance. The voltage regulation is precise, with a ±1.0% line regulation and ±2.0% load regulation, keeping the output voltage consistent even when input voltage fluctuates or the number of connected cameras changes.
To adapt to different surveillance scales, the product offers three channel variants:
4CH model: Each channel supports a current range of 0-1.25Amp, with a total current of 0-5Amp—ideal for small setups like residential properties or small retail stores with a limited number of cameras.
9CH model: Each channel provides 0-0.55Amp, with a total current of 0-5Amp—suitable for medium-scale environments such as office buildings, small malls, or multi-floor apartments.
18CH model: Each channel delivers 0-0.28Amp, with a total current of 0-5Amp—designed for large-scale systems like factories, parking lots, or public areas requiring extensive camera coverage.
This scalability eliminates the need for multiple power supplies, simplifying system setup and reducing installation complexity.
The CCTV-60 Power Supply integrates comprehensive protection features to safeguard both the power supply itself and connected CCTV equipment:
Overload protection: Triggers at 115%~135% of rated power and uses a pulsing hiccup shutdown mode; it automatically recovers once the abnormal load is removed.
Overvoltage protection: Activates when the output voltage reaches 105%~150% of the rated voltage, preventing damage to cameras from voltage spikes.
Short-circuit protection: Shuts down the output immediately in case of a short circuit; normal operation resumes after the input power is reset.
These protections ensure the system remains operational even in unexpected electrical conditions, reducing maintenance costs and downtime.
Beyond its operating temperature and humidity ranges, the CCTV-60 Power Supply has a storage temperature range of -20°C ~ +85°C and a storage humidity range of 10~95% RH, making it durable during transportation or temporary storage in harsh environments. It also features a ±0.05%/°C temperature coefficient, ensuring voltage stability even as ambient temperatures change—critical for outdoor or semi-outdoor surveillance setups exposed to daily temperature fluctuations.
The power supply uses free air convection for cooling, eliminating the need for noisy fans. This design not only reduces operational noise (essential for quiet environments like offices or residential areas) but also eliminates fan-related wear and tear, extending the product’s lifespan. Its compact form factor allows easy installation in tight spaces, such as CCTV control boxes or wall-mounted enclosures, saving valuable space in surveillance setups.
The CCTV-60-12-4CH model is ideal for residential properties (e.g., houses, townhouses) or small retail stores (e.g., convenience stores, boutique shops). It provides sufficient power for 4 cameras, covering entry points, backyards, or store interiors. Its compact size and easy installation make it a cost-effective choice for homeowners and small business owners looking to enhance security without complex setups.
For medium-scale commercial spaces—such as office buildings, multi-story retail stores, or small industrial facilities—the CCTV-60-12-9CH model is a perfect fit. It can power up to 9 cameras, covering lobbies, elevators, storage areas, and parking lots. Its wide input voltage range ensures compatibility with commercial electrical systems worldwide, while its efficiency helps reduce monthly energy bills for businesses.
The CCTV-60-12-18CH model is designed for large-scale environments, including factories, warehouses, large parking complexes, and public spaces (e.g., parks, train stations). It can power up to 18 cameras, providing comprehensive coverage for large areas. Its robust protection features and wide environmental adaptability make it suitable for industrial settings with potential electrical fluctuations or temperature variations.
Beyond CCTV systems, the CCTV-60 Power Supply can also power LED lighting (e.g., security lights paired with cameras) and small digital electronic devices (e.g., motion sensors, mini DVRs) in surveillance setups. This versatility allows users to consolidate power sources, simplifying system management and reducing the number of power outlets needed.
The CCTV-60 Power Supply supports a 110VAC or 220VAC selectable input voltage range. Users can switch between the two options to match the local electrical standard, making it compatible with power grids in North America, Europe, Asia, and other regions worldwide.
Each model has a distinct per-channel current range (with a total current of 0-5Amp for all variants):
CCTV-60-12-4CH: 0-1.25Amp per channel
CCTV-60-12-9CH: 0-0.55Amp per channel
CCTV-60-12-18CH: 0-0.28Amp per channel
This ensures each connected CCTV camera receives sufficient power without overloading the system.
