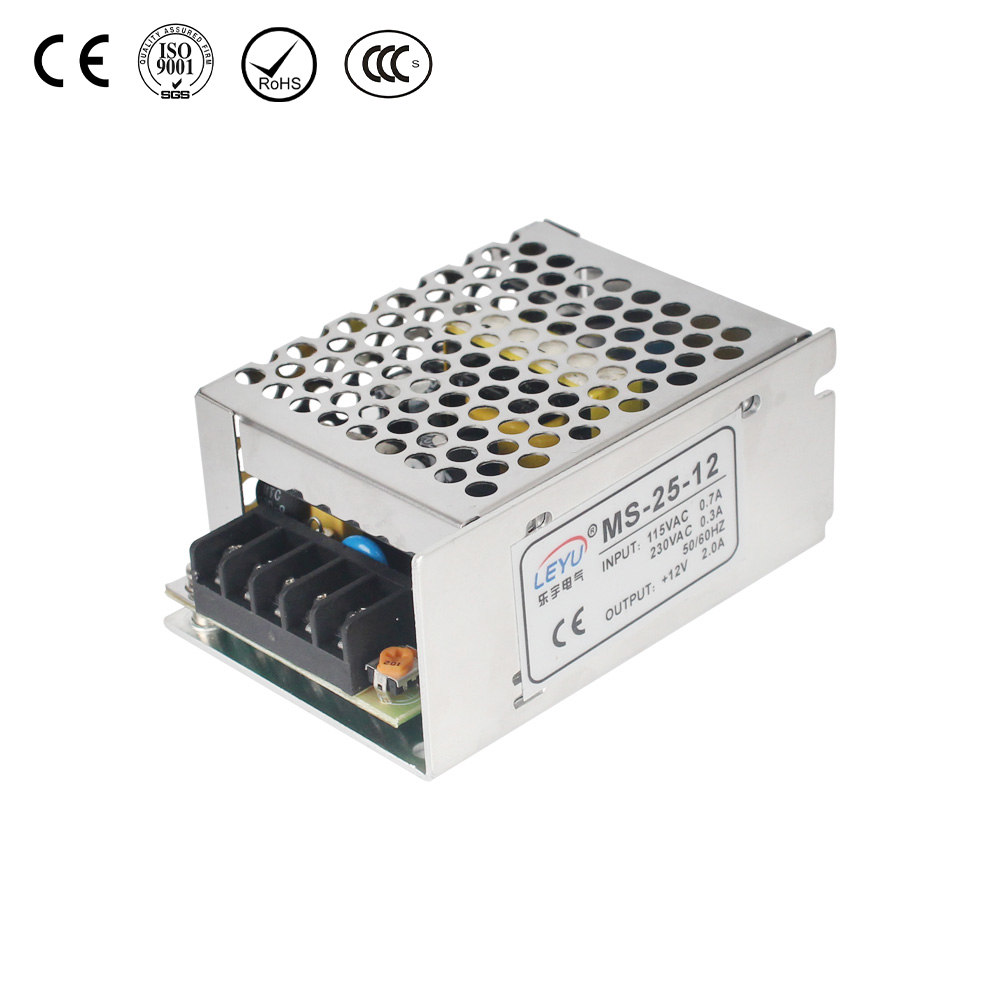

25W MS-25 Ac To Dc Single Output Power Supply

Product Overview

The 25W MS-25 AC to DC Single Output Power Supply is a versatile, high-reliability power conversion solution developed by Leyu, tailored for industrial, commercial, and personal electronics. As a flagship model in the MS Mini Single Output Power Supply series, it distinguishes itself with a unique blend of compact design, energy efficiency, and stable performance—addressing the core needs of users seeking consistent DC power for low-to-medium power devices.

This power supply supports a global input voltage range of 85~132VAC/170~264VAC (selectable via a built-in switch) and is compatible with 47~63Hz AC frequencies, as well as 240~370VDC DC input. This wide compatibility eliminates regional power grid limitations, making it suitable for use in North America, Europe, Asia, and beyond. It offers four output models (MS-25-5, MS-25-12, MS-25-15, MS-25-24) with rated voltages of 5V, 12V, 15V, and 24V, paired with rated currents of 5A, 2.1A, 1.7A, and 1.1A respectively—delivering rated power from 25W to 26.4W to match diverse device requirements.

Compared to traditional power supplies, the 25W MS-25 boasts superior efficiency (72%~80% at 115VAC input) and a space-saving form factor: 85*58*38mm (LWH) with a weight of just 0.2Kg. This compact size enables seamless integration into space-constrained systems, such as LED fixtures or industrial control panels. Every unit undergoes 100% full-load burn-in testing to ensure long-term reliability, and Leyu provides customization services to adapt the power supply to specific application needs, such as modified connectors or voltage tweaks.

Key Features

Ultra-Low Ripple & Noise for Clean Power

The 25W MS-25 AC to DC Single Output Power Supply maintains minimal ripple and noise, with a maximum of 100mVp-p (and 50mVp-p for the 5V model). This low interference ensures clean power delivery, which is critical for sensitive electronics like communication modules, precision sensors, or audio equipment—preventing signal distortion or performance glitches.

Flexible Voltage Tuning & Tight Tolerance

It offers a voltage adjustment range of ±10% (+10%, -5% for the 5V model), allowing users to fine-tune output voltage to match their equipment’s exact needs. Additionally, it features tight voltage tolerance (±1% for 12V/15V/24V models; ±2% for 5V) and line stability of ±0.5%, ensuring consistent output even when input voltage fluctuates (e.g., during peak power hours).

Reliable Line & Load Stability

With load stability of ±0.5% (±1% for 5V), the power supply keeps output voltage steady as the load varies from 0% to 100%. This is essential for devices with dynamic power demands, such as LED drivers or industrial PLCs (Programmable Logic Controllers), avoiding voltage drops that could cause equipment malfunctions or data loss.

Fast Startup & Extended Hold-Up Time

The 25W MS-25 features a rapid startup time of 300ms (230VAC) and 800ms (115VAC), enabling connected devices to power up quickly. It also provides a hold-up time of 90ms (230VAC) and 12ms (115VAC), maintaining power during short input interruptions—critical for preventing system shutdowns in applications like routers or industrial controls.

Safe Inrush Current & Durable Components

Cold-start inrush current is limited to 30A (230VAC) and 15A (115VAC), protecting both the power supply and the input grid from sudden surges. It also uses 105°C high-temperature output capacitors, ensuring durability even in harsh operating environments. A built-in EMI filter complies with CLSPR22 (EN55022) and IEC801-2, 3, 4 standards, reducing electromagnetic interference and meeting global regulatory requirements.

Comprehensive Over-Load Protection

The power supply includes over-load protection that triggers at 105%~150% of the rated load. It uses a hiccup shutdown mechanism with auto-recovery—resuming operation automatically once the overload is resolved—eliminating the need for manual reset and maximizing system uptime.

Practical Applications

LED Drivers

The 25W MS-25 AC to DC Single Output Power Supply is an ideal match for LED drivers, especially those requiring 24V DC output. Its low ripple and noise (≤100mVp-p) prevent LED flicker, while its high efficiency (up to 80%) reduces energy consumption and heat buildup—extending the lifespan of both the driver and LEDs. Its compact size (85*58*38mm) fits easily into residential downlights, commercial display panels, or outdoor LED signage.

Industrial Control Systems

In industrial settings, the power supply powers PLCs, sensors, and small automation devices. Its wide operating temperature range of -10℃~+60℃ (refer to the output derating curve for extreme conditions) and vibration resistance (10~500Hz, 2G for 10 minutes per cycle, 60 minutes per axis) make it suitable for factory floors or harsh outdoor industrial environments. The ±0.5% load stability ensures control signals remain accurate, avoiding production delays.

Consumer Electronics

For consumer devices like small home appliances, portable audio equipment, or smart home sensors, the 25W MS-25 offers a space-efficient and energy-saving solution. Its global input range (85~132VAC/170~264VAC) works in any country, and its lightweight design (0.2Kg) integrates easily into compact product enclosures. Built-in safety features (e.g., over-load protection) also enhance user safety.

Communication Devices

Communication systems—such as routers, modems, or small base stations—rely on consistent power to maintain signal integrity. The 25W MS-25’s low EMI (compliant with IEC555-2) prevents signal interference, while its hold-up time (90ms at 230VAC) ensures uninterrupted operation during brief power outages. This reliability minimizes communication downtime, making it a top choice for telecom applications.

FAQ

What is the efficiency range of the 25W MS-25 AC to DC Single Output Power Supply?

The efficiency varies by input voltage and output model, ranging from 72% (5V model at 115VAC input) to 80% (24V model at 115VAC input). This high efficiency reduces energy waste, lowers operating temperatures, and extends the power supply’s lifespan—reducing long-term maintenance costs.

Can the 25W MS-25 be used in any country?

Yes. It supports a wide input voltage range of 85~132VAC/170~264VAC (selectable via switch) and is compatible with 47~63Hz AC frequencies—covering standard power grids worldwide. It also accepts 240~370VDC input, adding flexibility for DC-powered environments (e.g., off-grid systems).

What safety certifications does the 25W MS-25 have?

The power supply meets international safety standards, including UL1012, TUV EN60950 (IEC950, UL1950), ensuring compliance with rigorous electrical safety requirements. It also adheres to EMC standards like CLSPR22 (EN55022) and IEC801-2, 3, 4, minimizing interference with other devices and meeting global regulatory norms.

What are the operating and storage temperature ranges for the 25W MS-25?

It operates reliably between -10℃ and +60℃ (refer to the output derating curve for performance adjustments at extreme temperatures) and can be stored between -20℃ and +85℃. It tolerates humidity levels of 20%~90%RH (operating) and 10%~95%RH (storage), making it suitable for diverse climates—from cold warehouses to humid outdoor installations.
