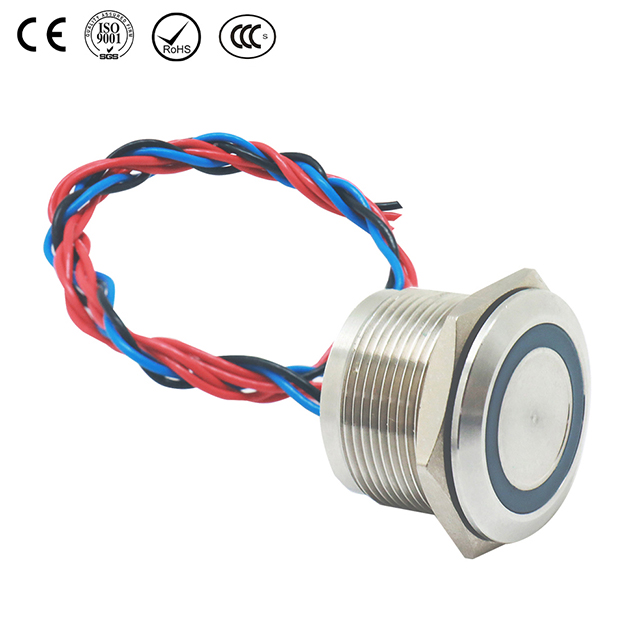

Product Name | IP68 Waterproof Piezo Switch | |||
Model | ZMPS30A-H1OM | ZMPS30A-H10M/D | ZMPS30A-D10M/R | |
Mounting Hole Size | 30mm | |||
Operation Types | Momentary (Reset) | |||
Switch Combination | 1NO | |||
Actuator Shape | Flat/Chamfer/Concave/High Flat | |||
Terminal type | Wired lead | |||
Illuminated or not | Yes or NO | |||
Led Voltage | 3-24V | |||
Led Color | Blue (Red,Green, Yellow,White,Orange,Purple available) | |||
Illuminated Type | Ring/Dot | |||
Enclosure Material | Stainless Steel/ Aluminum | |||
Rated Current | 2A | |||
Contact Resistance | 50 mn max | |||
Operating Force | 6 to 15N | |||
Dielectric Intensity | 2000VAC | |||
Operating Temperature | -40°C to +75°C | |||
Accessories | Nut, Rubber Waterproof O-ring | |||
Customized symbol,colored housing or Connector | Acceptable and with fast shipping | |||
Choose 2/3 colors from two-color/three-color light combination (above colors) | ||||
Diverse Styles: Choose from flat, chamfer, concave, or high flat actuator shapes to fit different needs.
Strong Waterproof Performance: Adopts glued package with IP68 waterproof rating, along with pure copper wire for good conductivity.
Durable Illumination: Equipped with high-light LED wicks that have a long lifespan of up to 30,000 hours, with various color options.
Flexible Illumination Options: Available in ring or dot illuminated types, and can be non-illuminated if needed.
Enclosure Material: Stainless steel or aluminum provides strength and corrosion resistance, suitable for different environments.
Electrical Performance: With a rated current of 2A, contact resistance up to 50 mΩ max, and dielectric intensity of 2000VAC, it ensures safe and stable operation.
Mechanical Performance: Operating force ranges from 6 to 15N, making it easy to press while preventing accidental operation.
Control Function: Acts as a trigger to start or stop equipment, with momentary operation for quick control.
Indicator Function: When illuminated, the LED serves as a status indicator, showing if the switch is active or the equipment is running.
Safety Function: Helps prevent accidental operation with appropriate operating force, ensuring safe use.
Q: Can the LED color be changed?
A: Yes, besides blue, red, green, yellow, white, orange, and purple are available.
Q: Is the switch suitable for high-temperature environments?
A: It works in operating temperatures from -40°C to +75°C, so it’s suitable for most high-temperature scenarios within this range.
Q: What’s the difference between ring and dot illuminated types?
A: Ring illumination forms a circular light around the switch, while dot illumination is a small point of light, both indicating status but with different visual effects.
