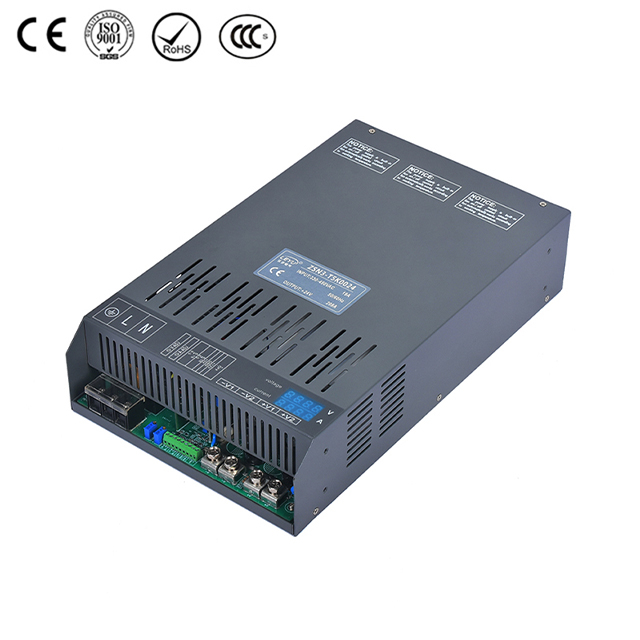

ZSN3-T5K
LEYU
| Availability: | |
|---|---|
| Quantity: | |
| Model | ZSN3-5K0-12 | ZSN3-5K0-24 | ZSN3-5K0-36 | ZSN3-5K0-48 | ZSN3-5K0-72 | ZSN3-5K0-96 | ZSN3-5K0-110 | ZSN3-5K0-150 | ZSN3-5K0-220 |
| Output | |||||||||
| DC Voltage | 12V | 24V | 36V | 48V | 72V | 96V | 110V | 150V | 220V |
| Rated Current | 0-333A | 0-280A | 0-138.8A | 0-104A | 0-69A | 0-52A | 0-45A | 0-33A | 0-22.7A |
| Rated Power | 4000w | 5000w | |||||||
| Ripple | 250mV | 270mV | 300mV | 400mV | 500mV | 600mV | 850mV | 900mV | 1000mV |
| Optimal Range of Constant Current | 6 - 12V | 12-24V | 18-36V | 24V-48V | 36 - 72V | 48 - 96V | 55 - 110V | 75 - 150V | 110 - 220V |
| voltage accuracy | ± 1.0% | ||||||||
| linear adjustment rate | ± 1.0% | ||||||||
| load regulation | ± 1.0% | ||||||||
| Setup, Rise, Hold Up Time | 1500mS，100mS/230VAC(at full load） | ||||||||
| Input | |||||||||
| Voltage Range | 180 - 264VAC / 245 - 370VDC | ||||||||
| Frequency Range | 45Hz - 65Hz | ||||||||
| Power factor | PF≧0.6/230VAC(at full load) | ||||||||
| Efficiency | 83 % | 86 % | 87 % | 89 % | 90 % | 90 % | 90 % | 91 % | 91 % |
| AC Current | ＜ 55A | ||||||||
| Leakage Current | ＜ 3.0mA / 240VAC | ||||||||
| Protection | |||||||||
| Short circuit | Enter a constant current | ||||||||
| Over Temp | The output is turned off, and it automatically resumes or restarts when the temperature drops | ||||||||
| FUNCTION | |||||||||
| output voltage adjustment | 0 - 13.2V | 0 - 26.4V | 0 - 39.6V | 0 - 52.8V | 0 - 79.2V | 0 - 105.6V | 0 - 121V | 0 - 165V | 0 - 242V |
| constant current output adjustment | 0 - 333A | 0 - 208A | 0 - 138.8A | 0 - 104A | 0 - 69A | 0 - 52A | 0 - 45A | 0 - 33A | 0 - 22.7A |
| External potentiometer | External potentiometer control (voltage, current) | ||||||||
| Analog voltage control | 0 - 5V / 0 - 10V Control (voltage, current) | ||||||||
| Auxiliary power supply | 12V 0.5A | ||||||||
| remote control switch | By default, it will be powered on and powered off at a high level （3V-12V） | ||||||||
| ENVIRONMENT | |||||||||
| Working Temp | -20 - +60℃ | ||||||||
| Working Humidity | -20 - 90% RH No condensation | ||||||||
| Storage Temp., Humidity | -40 - +85℃, 10 - 95% RH No condensation | ||||||||
| vibration resistance | 10 - 500Hz, 2G 10 min/cycle, 60 minutes each in X, Y, and Z axes | ||||||||
| SAFETY | |||||||||
| Insulation resistance | Input-to-output:100Mhms/500VDC/25℃/70%RH | ||||||||
| Withstand Voltage | I/P-O/P :1.2KVAC I/P-FG:1.2KVAC O/P-FG:0.5KVAC | ||||||||
| OTHERS | |||||||||
| Dimension | 356*216*80mm（L*W*H） | ||||||||
| Weight | 6.5 KG | ||||||||
High Efficiency: Adopting advanced topology PFC, the conversion efficiency can reach 91%. High efficiency means less energy is dissipated as heat, helping to reduce system cooling costs and overall energy consumption.
High Reliability: Components are strictly selected, and products undergo 100% full-load aging tests. Built-in EMI filters help reduce electromagnetic interference. The wide input voltage design allows it to adapt to power grid fluctuations, ensuring stable output.
Intelligent Control: Supports remote power on/off, remote adjustment of output voltage/current, and parallel current sharing operation.
Multiple Protection Functions: Overvoltage, overcurrent, short circuit, and overtemperature protection can effectively safeguard both the power supply itself and the downstream load.
Environmental Adaptability: Designed for harsh industrial environments, it can operate stably in a wide temperature range from -20°C to 760°C, as well as under conditions of high humidity and heavy dust.
Industrial Automation: Provide stable power for PLCs, industrial equipment, sensors, automated production lines, and more.
Testing and Measurement Equipment: Provide clean, programmable power output for semiconductor testing, LED lighting testing, battery charge and discharge testing, solar photovoltaic simulation, and other equipment in R&D, quality inspection, and aging tests.
Laser Equipment: Drive high-power laser devices such as laser cutting machines and laser marking machines, requiring power supplies with fast response and high stability.
Communication Infrastructure: Provide primary or backup power for communication base stations, data center servers, network equipment, etc., emphasizing reliability for uninterrupted operation.
New Energy Sector: Used in electric vehicle charging stations, auxiliary power for solar inverters, energy storage system testing, and more.
Special Lighting and Displays: Drive high-power LED lighting systems, large outdoor LED displays, and similar applications.
