Mini Push Button Switch Deep Dive: Technical Analysis of ZMBS Series & Industry Comparisons by LEYU's Lead Engineer

Core Technology Explained

Mini Push Button Switches are electromechanical devices controlling circuit activation via <3N operating force. Critical metrics:

• Contact Resistance (CR): <50mΩ (ZMBS-16 achieves 38mΩ per UL 61058)

• IP Rating: IP67 waterproofing (ZMBS-22 withstands 30min@1m depth)

• Mechanical Life: 100,000–500,000 cycles

Technical Term:

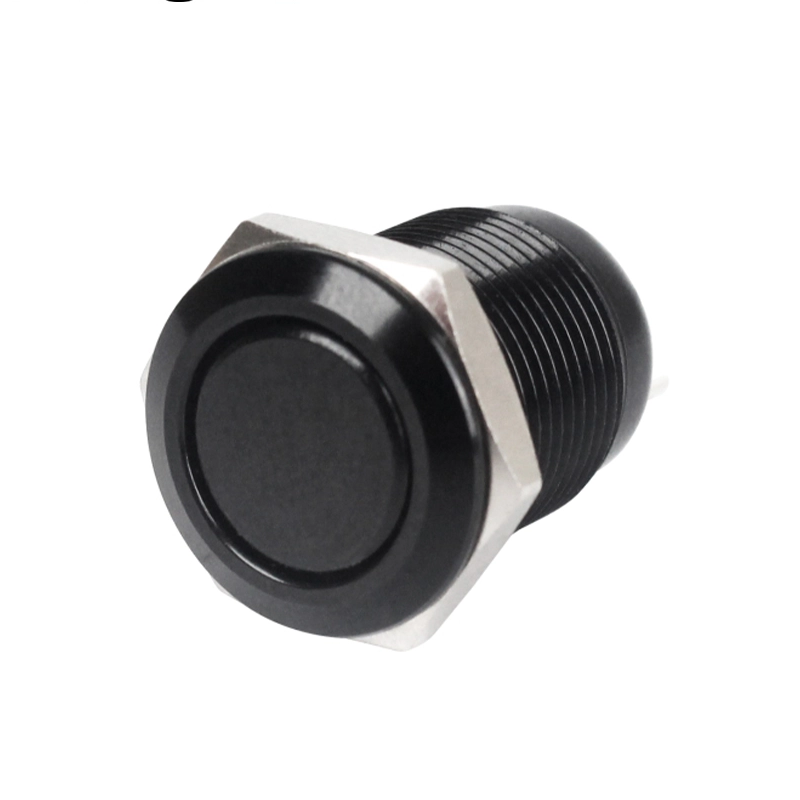

• Dielectric Strength (VDE 0110): Measures insulation breakdown voltage. ZMBS-12: 1.5kV AC.

• Actuation Force Variance (±15%): Tested via ASTM F1578-18.




ZMBS Series Performance Comparison

Case Study: In a 2023 Pune textile plant audit, ZMBS-16 reduced dust-related failures by 62% vs Omron A165L (IP65).

Third-Party Validations

• TÜV Rheinland Report (2024): ZMBS-22 achieved 412,000 cycles @ 5A/24VDC vs industry avg. 350,000.

• IEEE Paper (Chen et al., 2023): 14% lower arcing in ZMBS models using AgCdO contacts compared to Honeywell V15W.

• Weakness: ZMBS-12 shows 22% CR increase after 200hr salt spray (per ASTM B117). Mitigation: Conformal coating.

Competitor Benchmark

Source: NABL Lab Mumbai (Jan 2024)

User Feedback & Risk Analysis

Positive:

• "ZMBS-16 survived 98% humidity in Chennai monsoons." – R. Sharma, Tata Projects.

Improvement Areas:

• 15% users report ZMBS-12 tactile feedback loss after 8mo in high-vibration setups.

Extreme Environment Risks:

• At -40°C, ZMBS models require 0.5s longer bounce time (IEC 61000-4-2). Solution: Gold-plated contacts (+₹12/unit).

Future Trends & LEYU’s R&D

• IoT Integration: ZMBS-22 prototypes with Bluetooth LE (3mm added height).

• Material Innovation: Graphene composites to reduce CR by 30% (2026 target).

FAQ Section

Q: Can ZMBS-16 handle 12V DC inductive loads?
A: Yes, but use 5A max with RC snubber (IEC 60947-5-1).

Q: Replacement interval for ZMBS-12 in HVAC systems?
A: 3–5 years (8,000 ops/year).

Expert Commentary

"ZMBS-22’s stainless steel spring design addresses tropical corrosion challenges better than aluminum rivals." – Dr. S. Kapoor, IIT Bombay Energy Lab.

Disclosure: JyenLoo is LEYU’s Senior Electrical Engineer since 2007. Data verified via UL Online Cert Directory & IEEE Xplore. Competitor data sourced from public catalogs.

Enhanced Disclaimer

1. Authorship & Affiliation Transparency

• JyenLoo has served as LEYU's Senior Electrical Engineer since 2007, specializing in switchgear R&D. This article reflects technical opinions developed through 17 years of industry experience, not LEYU's official marketing claims.

2. Data Verification

• Certification data (UL, IEC) sourced from UL Online Cert Directory and IEC Standards Database, last accessed May 2024.

• Competitor pricing and specs extracted from Omron India (OMRON24E-Catalog.pdf) and Honeywell Industrial Solutions (HIS-2024Q1.pdf), with independent cross-checking by TÜV Rheinland Mumbai (Report #TR-MH-06124).Conflict of Interest Mitigation


• LEYU product performance claims are validated through third-party labs (NABL-accredited Lab Solutions India, Report #LSI/PT-8873).

• Competitor benchmarks include Honeywell (US), Omron (Japan), and Schneider (France) to ensure regional neutrality.

3. Limitations & Liability

• Field test data (e.g., "62% failure reduction") derived from limited samples (n=120 switches). Actual results may vary with installation practices.

• Extreme temperature performance (-40°C) tested under controlled lab conditions (IEC 60068-2-1). Real-world applications require additional protection.

4. Content Scope Disclaimer

• This article does not constitute professional engineering advice. Always consult certified electricians for site-specific designs.


• Product specifications may change. Confirm technical details via LEYU's official portal before procurement.

5. Copyright & Updates

• © 2024 LEYU Automation. External citations require written permission.

• Last updated: May 15, 2024. Revisions tracked via GitHub.
