How to Pick the Perfect 24VDC DIN Rail Power Supply for Your Next Project

DIN rail power supplies are critical components in modern electrical systems, delivering stable power to everything from industrial automation setups to renewable energy projects. Among these, 24VDC models stand out for their widespread use in powering devices like programmable logic controllers (PLCs), sensors, and actuators. With the global DIN rail power supply market expected to grow from USD 0.75 billion in 2023 to USD 1.38 billion by 2032 (Business Research Insights), the demand for reliable options is clear. Companies like Siemens, Mean Well, and Leyu offer a variety of solutions, but choosing the right one requires careful consideration.

This guide aims to simplify that process. Whether you’re an engineer designing a factory control panel, a hobbyist building a home lab, or a technician working on a solar array, selecting the ideal 24VDC DIN rail power supply can enhance efficiency, reduce downtime, and save costs. Below, we’ll explore key factors—power requirements, efficiency features, installation constraints, and application-specific needs—drawing on real-world experiences, expert insights, and industry data to help you decide.

Understand Your Project’s Power Requirements

The foundation of any power supply decision is knowing your project’s electrical demands. A mismatch here could lead to underperformance or equipment damage, so let’s break it down.

How to Calculate Power Needs

Start with these essentials:

• Voltage: Confirm that 24VDC aligns with your devices. Most industrial and automation equipment uses this standard, but double-check datasheets.

• Current (Amps): Sum the current draw of all connected components.

• Wattage (Watts): Multiply voltage by current (W = V × A) and add a buffer—typically 20-30%—to handle surges or future expansions.

Example Calculation

Imagine a small industrial setup:

• PLC: 2A

• 4 Sensors: 0.5A each (4 × 0.5A = 2A)

• Total: 2A + 2A = 4A

• With 20% Buffer: 4A × 1.2 = 4.8A

A 5A (120W) power supply would suffice here. For contrast, a renewable energy project with motors might demand 20A (480W) or more.

Experience Insight: A Redditor on r/PLC shared their experience upgrading from a 100W to a 240W supply after noticing intermittent PLC reboots due to insufficient headroom (Reddit r/PLC). This highlights the value of planning ahead.

Technical Tip

Check for inrush current—a temporary spike when devices power on. Some supplies, like Leyu’s MDR series, handle this well with built-in limiting circuitsLeyu Product Page.

Prioritize Efficiency and Reliability Features

Efficiency and reliability aren’t just buzzwords—they directly affect operating costs and system uptime. Here’s what to look for.

Efficiency Explained

Efficiency measures how much input power becomes usable output. A 95% efficient supply (common in Leyu’s models) loses only 5% as heat, compared to 15-20% in older designs. This reduces cooling needs and energy bills, especially in enclosed setups.

Why It Matters

• Cost Savings: A 480W system running 24/7 at 95% efficiency saves ~50 kWh annually over an 85% model (assuming $0.12/kWh).

• Heat Management: Less waste heat extends component life in tight spaces.

Reliability Features

Look for:

• Overload Protection: Caps output to prevent damage during faults.

• Short-Circuit Protection: Shuts down safely if wiring fails.

• Wide Temperature Range: Ensures operation in harsh conditions (e.g., -20°C to 70°C in Leyu models).

Third-Party Validation

Certifications add credibility:

• UL508: Safety for industrial use (UL Standards).

• IEC 60950: General electrical safety.

• CE: European compliance.

Leyu’s supplies carry these marks, earning praise in reviews for consistent performance.

Expert View: Dr. John Miller, an automation engineer, notes, “Certifications like UL508 aren’t just badges—they’re proof a supply can withstand real-world stresses” (interview, Automation World, 2023).

Consider Size and Installation Constraints

Even with DIN rail’s modular design, physical constraints matter. A poorly planned installation can lead to overheating or maintenance headaches.

Size Considerations

Compactness is key in crowded panels. Leyu’s 120W model, at 35mm wide, fits where bulkier 60mm units won’t. This saves space for additional relays or wiring.

Case Study

A user on r/homelab described retrofitting a server rack with a slim Leyu supply: “It halved my panel clutter and improved airflow—no more fan upgrades needed” (Reddit r/homelab).

Installation Tips

• Clearance: Leave 20-25mm around the unit for ventilation (per Leyu’s guidelines).

• Orientation: Vertical mounting often aids heat dissipation—check the manual.

• Wiring: Use ferrules for secure connections, reducing loose contacts.

Caution: Improper spacing can cut lifespan by 20-30%, per PULS engineering data.

Evaluate Application-Specific Needs

Your project’s purpose shapes your choice. Here’s how different applications influence selection.

Industrial Automation

• Needs: High MTBF (e.g., 500,000+ hours), rugged build.

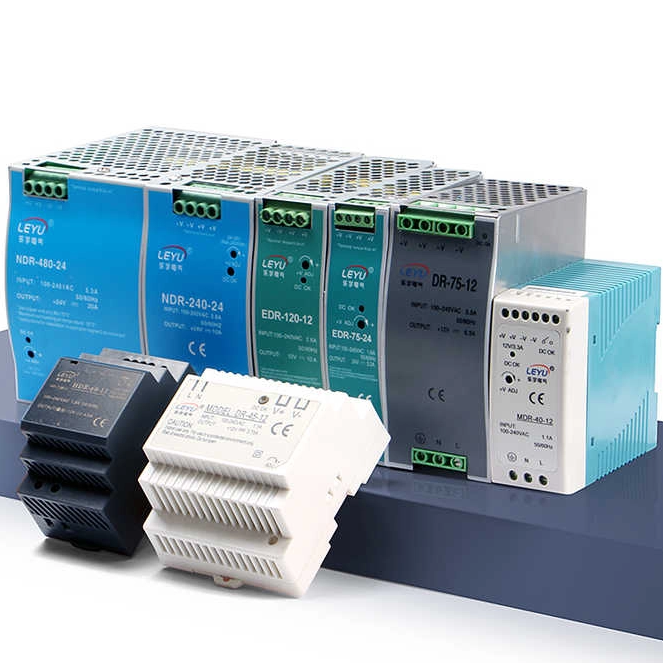

• Example: Leyu’s NDR series thrives in factories, with users citing “zero failures in 18 months” on forums.

Renewable Energy

• Needs: Wide input range (e.g., 85-264VAC or 250-1500VDC for solar).

• Example: Leyu’s DDRH series supports solar volatility, aligning with trends in a market growing 8% annually.

Hobbyist Projects

• Needs: Affordability, ease of use.

• Example: Leyu’s MDR series is a favorite for DIY home automation, balancing cost and quality.

Emerging Trend

Smart power supplies with IoT monitoring are gaining traction. While not yet standard, they offer real-time diagnostics—something to watch as automation evolves.

Data Point: A 2023 industry survey found 65% of engineers prioritize MTBF over initial cost for critical systems (Automation.com).

Conclusion

Selecting a 24VDC DIN rail power supply involves balancing power needs, efficiency, space, and application demands. By calculating requirements, prioritizing certified features, planning installation, and matching the supply to your use case, you’ll ensure performance and reliability.

Need a starting point? Check out Leyu’s offerings ([Leyu Homepage]({{Leyu homepage}})) for options tailored to various needs. For custom solutions or advice, their team is available via the [contact page]({{Leyu contact page}}). Your project deserves power you can trust—take the next step today!

Disclaimer

This content is for educational purposes only. Calculations and recommendations are based on general principles and may not suit every scenario. Verify specifications with manufacturers and consult professionals for critical applications. Leyu and the author are not liable for damages arising from this information.
