How to Connect a 12V Push Button Switch: A Step-by-Step Guide

Introduction to 12V Push Button Switches

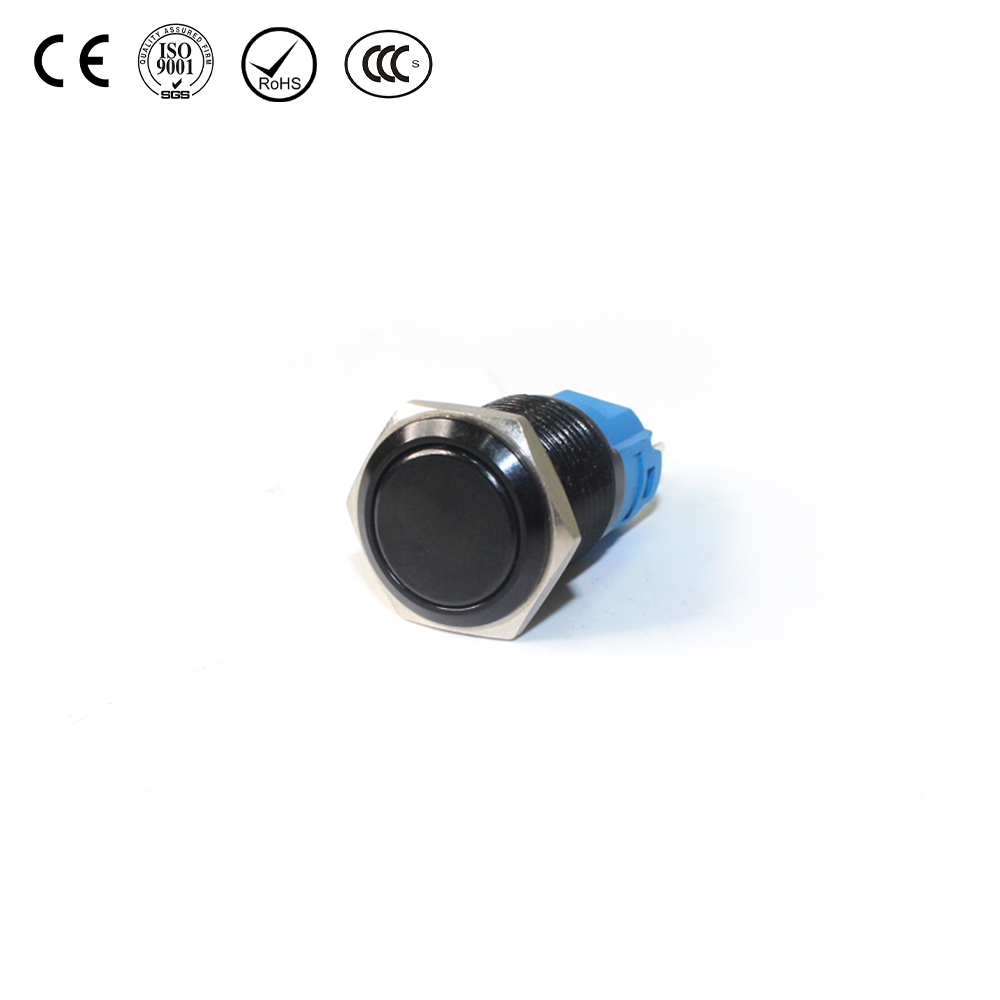

Push button switches, such as LEYU’s ZMBS Series, are essential components in low-voltage applications like automotive systems, marine equipment, and home automation. Designed for durability and reliability, 12-volt push button switches ensure safe control of circuits without overloading. In this guide, we’ll explain how to connect a 12V push button switch correctly, adhering to safety standards and maximizing performance.

Why Choose LEYU’s ZMBS Series 12V Push Button Switches?

Before diving into installation, it’s critical to select a switch built for 12-volt systems. LEYU’s ZMBS Series offers:

• IP67 Waterproof Rating: Ideal for harsh environments.

• High-Cycle Durability: 100,000+ press cycles.

• UL-Certified Materials: Ensures safety and compliance.

• SPST/SPDT Configurations: Flexible for diverse wiring needs.

These features make ZMBS switches a top choice for professionals and hobbyists working with 12V systems.

Tools and Materials Required

1. LEYU ZMBS Series push button switch (12V rating).

2. 12V power source (battery or DC supply).

3. Insulated wire (16-22 AWG recommended).

4. Wire strippers and crimping tools.

5. Multimeter (for testing connections).

6. Heat shrink tubing or electrical tape.

Step-by-Step Wiring Guide for 12V Push Button Switches

Step 1: Identify the Terminals

Most ZMBS Series switches have 2-4 terminals, labeled as:

• NO (Normally Open): Closes the circuit when pressed.

• NC (Normally Closed): Opens the circuit when pressed.

• C (Common): Central contact point.




For basic 12V applications, a 2-terminal (SPST) switch suffices.

Step 2: Prepare the Wires

1. Cut two wires to connect the power source and load (e.g., LED, motor).

2. Strip ¼ inch of insulation from each end.




Step 3: Connect the Switch

1. Attach one wire from the 12V power source’s positive terminal to the switch’s C terminal.

2. Connect the second wire from the switch’s NO terminal to the positive terminal of your load (e.g., light).

3. Ground the load’s negative terminal directly to the power source’s negative terminal.

Pro Tip: Use a multimeter to test continuity before powering the circuit.

Step 4: Secure and Test

1. Insulate connections with heat shrink tubing.

2. Power the circuit and press the switch to activate the load.

Safety Tips for 12V Push Button Switch Installation

• Always disconnect the power source before wiring.

• Avoid over-tightening terminals to prevent damage.

• Use fused circuits for high-current applications (e.g., automotive).

Common FAQs About 12V Push Button Switches

Q1: Can I use a 12V switch for 24V systems?
No. Exceeding voltage ratings risks switch failure or fire. Always match the switch’s specs to your system.

Q2: How do I waterproof my ZMBS Series switch?
LEYU’s ZMBS switches are pre-rated IP67. Seal wire connections with marine-grade adhesive for added protection.

Q3: What’s the lifespan of a ZMBS switch?
Tested for 100,000+ cycles, LEYU’s switches outperform generic brands in high-use scenarios.

Why Trust LEYU for Your Electrical Components?

As a ISO 9001-certified manufacturer, LEYU combines decades of expertise with rigorous quality control. Our ZMBS Series push button switches are trusted by engineers worldwide for their precision and reliability. Whether you’re building a custom vehicle or industrial machinery, choose components engineered to last.

Final Words

Properly connecting a 12V push button switch ensures safe and efficient operation. For premium components like the ZMBS Series, visit [LEYU’s official website] to explore our full range of 12-volt switches. Got questions? Contact our technical support team for personalized guidance.
